• Year
  • 1974/1975
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 77172

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 2
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 2 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Tobitest TBT800 - Messelektronik Berlin, VEB,
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 40 x 165 x 22 mm / 1.6 x 6.5 x 0.9 inch
  • Notes

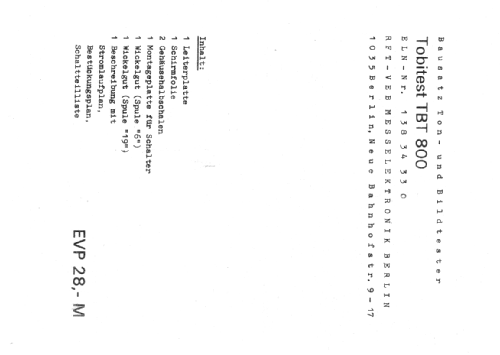

  • Ton- und Bildtester, Signalverfolger in Prüfstiftform als Bausatz mit 2-V-Rulag-Akku. 2 Oszillatoren: 94 kHz und 5,35 MHz; Pulsfolge ca. 400 Hz als Modulation. Durch Oberwellen werden UKW-, VHF- und UHF-Frequenzen erzeugt.
  • Price in first year of sale
  • 28.00 DM
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • radio fernsehen elektronik H.2/1975
  • Literature/Schematics (1)
  • Zeitschrift "Funkamateur" 2/1975
  • Author
  • Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
