Analog Wattmeter EL21

Analog Wattmeter EL21; Metra; Blansko (ID = 1705549) Equipment

Analog Wattmeter EL21; Metra; Blansko (ID = 1705550) Equipment
Analog Wattmeter EL21; Metra; Blansko (ID = 749527) Equipment Analog Wattmeter EL21; Metra; Blansko (ID = 750209) Equipment
Analog Wattmeter EL21; Metra; Blansko (ID = 1434090) Equipment Analog Wattmeter EL21; Metra; Blansko (ID = 1434091) Equipment
Analog Wattmeter EL21; Metra; Blansko (ID = 1434092) Equipment Analog Wattmeter EL21; Metra; Blansko (ID = 1434093) Equipment
Analog Wattmeter EL21; Metra; Blansko (ID = 1434094) Equipment Analog Wattmeter EL21; Metra; Blansko (ID = 1705515) Equipment
Analog Wattmeter EL21; Metra; Blansko (ID = 1705516) Equipment Analog Wattmeter EL21; Metra; Blansko (ID = 1705517) Equipment
Use red slider bar for more.
Analog Wattmeter EL21; Metra; Blansko (ID = 749527) Equipment
Metra; Blansko: Analog Wattmeter EL21 [Equipment] ID = 749527 843x700

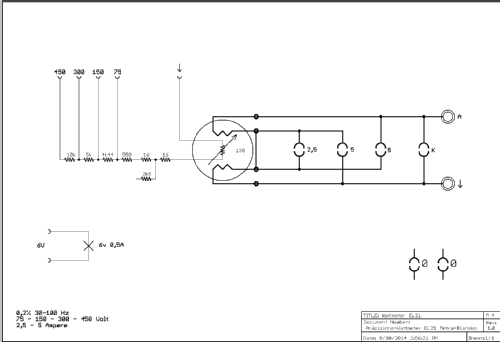

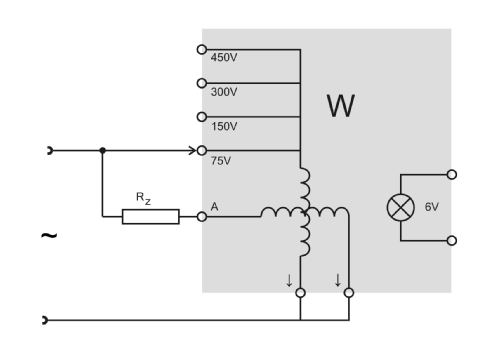

Select picture or schematic to display from thumbnails on the right and click for download.
For model Analog Wattmeter EL21, Metra; Blansko

Country:  Czechoslovakia (until 1992)
Manufacturer / Brand:  Metra; Blansko
Year: 1989 Type: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 6 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Analog Wattmeter EL21 - Metra; Blansko
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 200 x 250 x 100 mm / 7.9 x 9.8 x 3.9 inch
Notes Precise analogue wattmeter with two light traces and scale divided into two parts. After the light ray reaches right end of the upper part of the scale, a new ray appears at the left end of the bottom part, continuing measurement in the second part of the scale. Possible measurement range is therefore doubled, with accuracy 0.1%.

Model page created by Róbert Truben. See "Data change" for further contributors.
