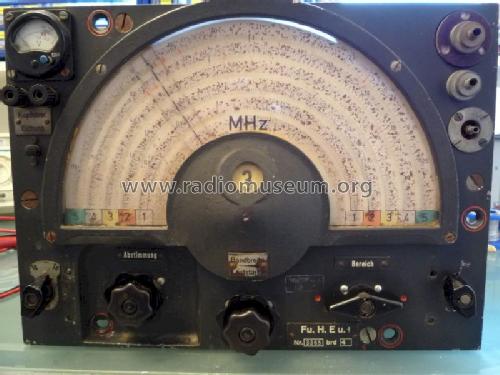

Funkhorchempfänger Fu H.E.u1 "Ulrich"
Militär (verschiedene Hersteller gleicher Modelle)
- Country
- Germany
- Manufacturer / Brand
- Militär (verschiedene Hersteller gleicher Modelle)
- Year
- 1943
- Category
- Military Receiver
- Radiomuseum.org ID
- 93674
-
- alternative name: WEHRMACHT
- Number of Tubes
- 9
- Valves / Tubes
- RV2P800
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage and/or dry batteries / 2, 90 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Funkhorchempfänger Fu H.E.u1 "Ulrich" - Militär verschiedene
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 365 x 453 x 250 mm / 14.4 x 17.8 x 9.8 inch
- Notes

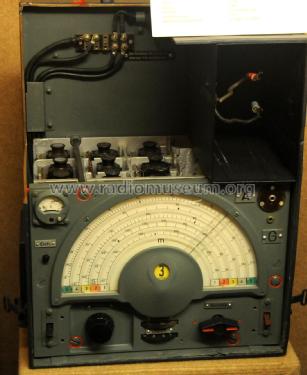

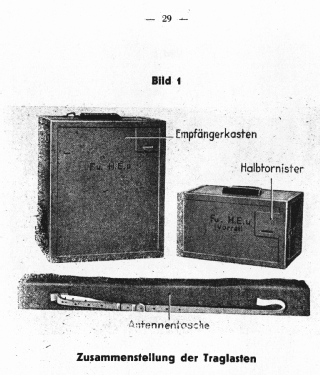

- "Ulrich" 750kHz bis 25MHz in 5 Bereichen, A1/A3-Betrieb, Halbkreisskala, Tornister mit Peilvorsatz Fu.N.P.V.u1 als Zubehör. Als Hersteller sind Hagenuk und Telefunken bekannt.
- Net weight (2.2 lb = 1 kg)
- 22 kg / 48 lb 7.3 oz (48.458 lb)
- Mentioned in
- Museums Bote, Österr. (Heft 114/2002, S.24, Gerätebeschreibung)

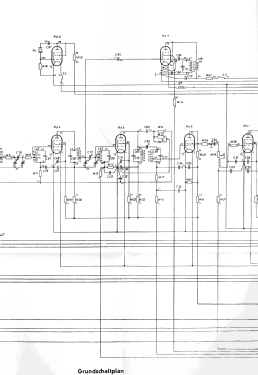

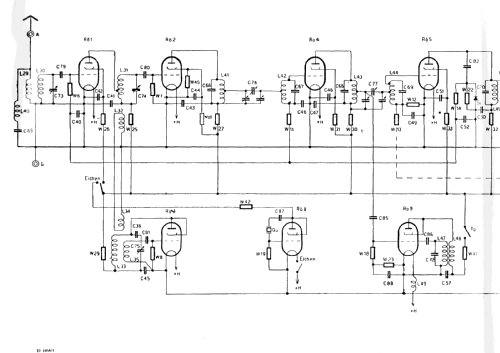

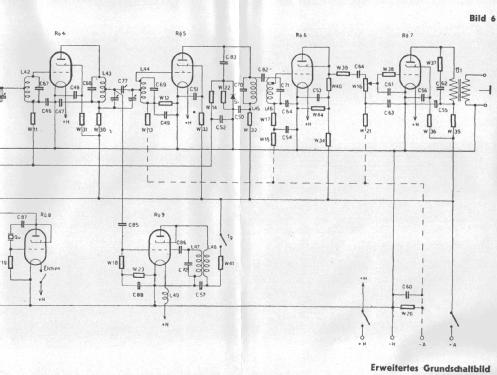

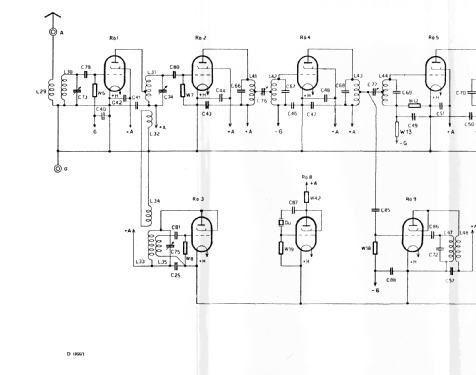

- Literature/Schematics (1)
- Die Deutschen Funkpeil- und Horchverfahren bis 1945 (24ff.)
