Transmitter T-22/ARC-5
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1942–1959
- Category
- Military transmitter
- Radiomuseum.org ID
- 225398

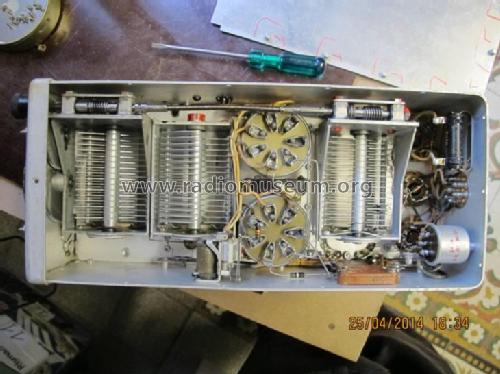

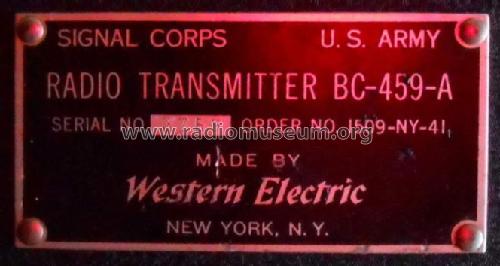

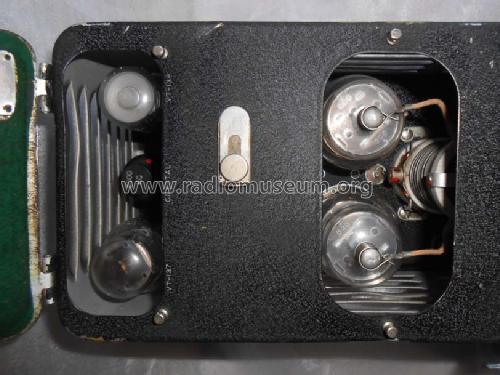

BC-459-A from my private collection.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Transmitter
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / 28 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Transmitter T-22/ARC-5 - MILITARY U.S. different makers
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 5.25 x 7.05 x 12.75 inch / 133 x 179 x 324 mm
- Notes
-

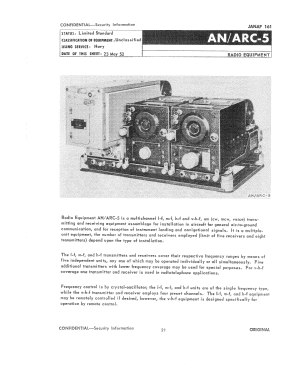

Radio transmitter, part of AN/ARC-5 "Command Set". 7,0 - 9,1 MHz, up to 40 W A1/A2/A3. Powered by DY-8/ARC-5 dynamotor installed on MD-7/ARC-5 modulator unit. Remotely controlled by C-29/ARC-5 control box.
The transmitter is the successor of the BC-459, which is part of radio set SCR-274-N. It's specifications and technical setup is very similar, but the BC-459 can not be replaced by the T-22/ARC-5.
- Net weight (2.2 lb = 1 kg)
- 9 lb (9 lb 0 oz) / 4.086 kg
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
