• Year
  • 1927/1928
  • Category
  • Detector-Radio (Crystal or diode, without tubes/transistors)
  • Radiomuseum.org ID
  • 9632

 Technical Specifications

  • Main principle
  • Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org

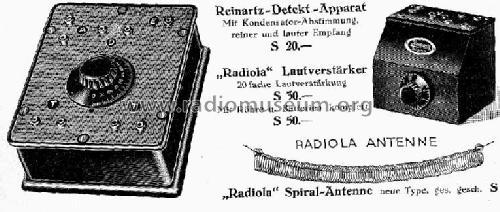

  • Model: Radiola Reinartz-Detektor-Apparat - Minerva-Radio Radiola-
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 125 x 70 x 145 mm / 4.9 x 2.8 x 5.7 inch
  • Notes
  • Der Name "Reinartz" ist hier glatte Hochstapelei. Die Reinartz-Schaltung (in USA Reinartz-Detector genannt) ist ein Rückkopplungsaudion mit Regelung über einen Drehko. Eine Reinartz-Detektorschaltung gibt es nicht!

    Es existiert auch ein Bastler-Umbau, der zwar interessanter aussieht, jedoch wegen des falschen Typenschilds als Fälschung bezeichnet werden muss.
  • Price in first year of sale
  • 20.00 öS
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
