• Year
  • 1938–1945
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 75350

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org

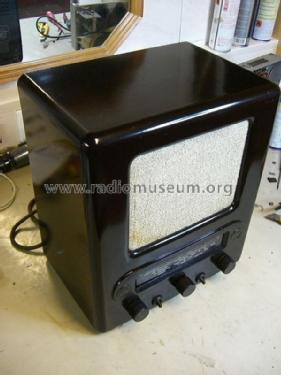

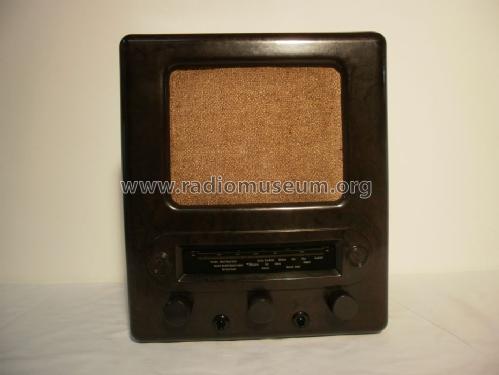

  • Model: Volksempfänger VE301 Dyn W - Minerva-Radio Radiola-
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 273 x 320 x 190 mm / 10.7 x 12.6 x 7.5 inch
  • Notes
  • Siehe auch Deutschland. Normalerweise nur unter Gemeinschaftserzeugnisse geführt.
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
