• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1988 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 132203

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

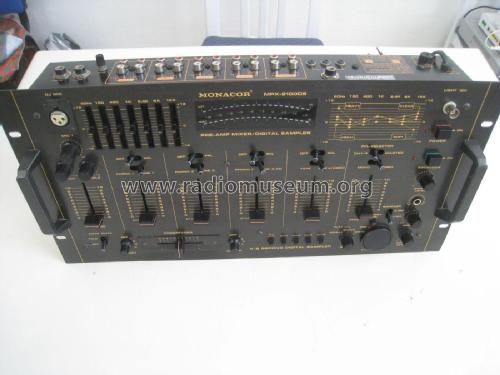

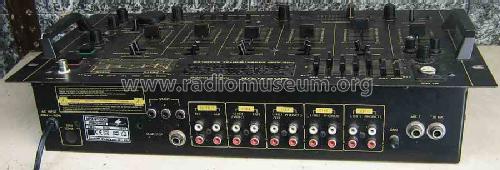

• Model: Stereo Mixer MPX-9100 DS - Monacor, Bremen

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 480 x 120 x 240 mm / 18.9 x 4.7 x 9.4 inch

• Notes
• MPX-9100 DS Stereo Mixer; 4/8 Second Digital Sampler, 5-Kanal-Stereo-Mischpult, Eingänge: 4× Phono/Line (umschaltbar), 2× Mikro. Eingebauter Entzerrervorverstärker, 7-Band-Grafikequalizer, Crossfader, Monitoranschluss.

• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
