Model: 64WG-1809A (64 WG 1809 A)
Antique radios, Old Time Radios
64WG-1809A (64 WG 1809 A)
Country:
United States of America (USA)
Manufacturer/Brand:
Montgomery Ward & Co.; Chicago (IL)
Year: 1946
Type:
Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs.
Mod.-ID = 48282
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 8 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 455 kHz; 2 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Tuned circuits
7 AM circuit(s);
Wave bands
Broadcast only (MW).Mittelwellenempfänger
Power type and voltage
AC/DC-set / 105 - 125 VoltAC-DC set (all-mains) - sometimes plus voltage range:
/ = 2 different voltages
- = voltage from-to
* = «Special»
Attention: Chassis mostly connected to deadly high tension!
Apparareil à tous-courants. Tensions mentionnées.
Wechsel- und Gleichstrom:
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl
Vorgeschalteten Trenntrafo verwenden! Chassis oft unter Starkstrom stehend!
Loudspeaker/pwr.out
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - ellipticalPermanent magnetic dynamic loudspeaker (moving-coil) in elliptical form - without field excitation coil. Haut parleur elliptique avec système dynamique (sans bobine d`excitation).
Permanent-dynamischer Ovallautsprecher (elliptisch, ohne Erregerspule für das Magnetfeld).
/ 0.75 W
www.radiomuseum.org
Model: 64WG-1809A (64 WG 1809 A)
Material
Modern plastics (no Bakelite or Catalin)Plastic case - not bakelite.
Caisse en plastique - pas en bekelite!
Moderner Kunststoff im Gegensatz zu Materialien wie Bakelit, Philit etc.
Shape
Tablemodel, with any shape - general.
Valves / Tubes
6:
12SK7
(more
for members)
Notes
4" x 6" PM elliptical speaker.
Photofact see under Trade name: Airline.
Collectors prices
1 Collector price
(for members)
External source of data
Ernst Erb
Source of data
Collector's Guide to AR4.Ed.,Bunis, tubeCollectors Guide to Antique Radios, Fourth Edition, 1997, Marty & Sue Bunis, Collector Books, Paducah, USA. See also the other editions.

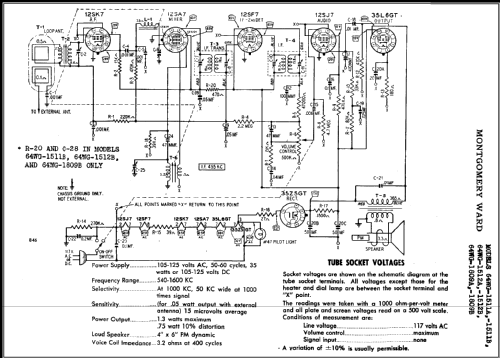

Circuit diagram reference
Rider's Perpetual, Volume 15Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:

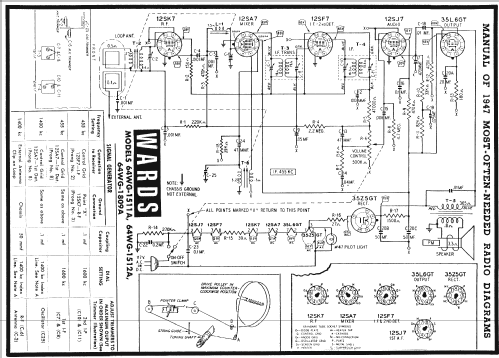

Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.
Mentioned in
The Radio CollectorGrinder, 1995The Radio Collectors Directory and Price Guide by Robert E. Grinder, Sonoran Publishing, LLC, USA: Is one of the best books for your information as a radio collector.
Literature/Schematics

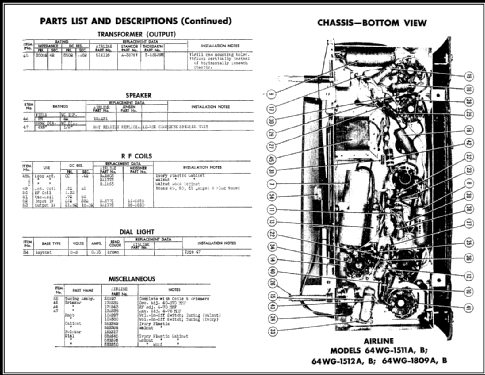

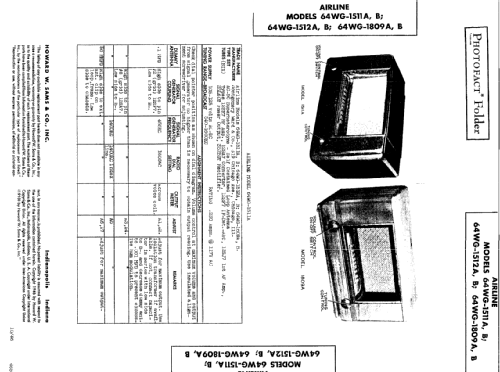

Photofact Folders, SamsPhotofact Folders, Howard W. Sams. Normally referenced in schematics but when there is more ... (select the last field and enter the number in the free field).

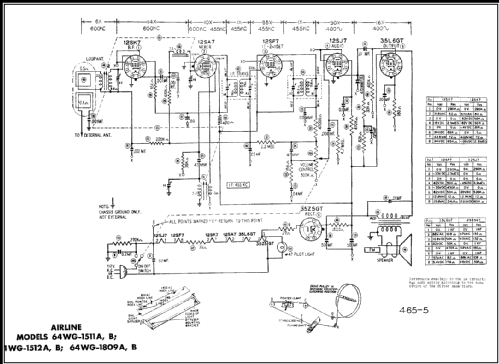

(Set 5, Folder 465-5)
Sams Photofact Folders
No further information
on
64WG-1809A (64 WG 1809 A) (Montgomery Ward & Co.; Chicago (IL))
