Airline 94BR-1535A Order= 62 C 1535 R ; Montgomery Ward & Co (ID = 195710) Radio
Montgomery Ward & Co: Airline 94BR-1535A Order= 62 C 1535 R [Radio] ID = 195710 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Airline 94BR-1535A (94 BR 135A) Order= 62 C 1535 R, Montgomery Ward & Co. (Wards, Airline); Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Montgomery Ward & Co. (Wards, Airline); Chicago, IL
Brand

Airline or Air-Line
Year: 1949–1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 12AT7 6BA7 6BA6 6AU6 6AL5 6AV6 6V6 5Y3 or 5Y3GT
Reception principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (3 W max.)
from Radiomuseum.org Model: Airline 94BR-1535A Order= 62 C 1535 R - Montgomery Ward & Co. Wards,
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15 x 10 x 9 inch / 381 x 254 x 229 mm
Notes

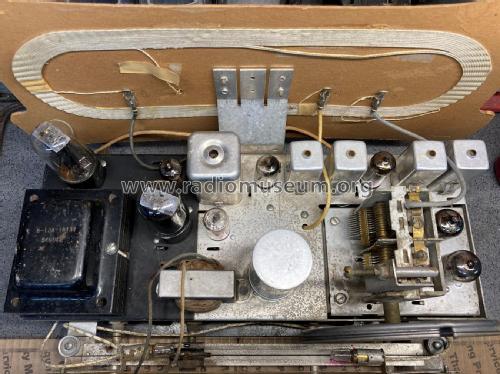

The Airline 94BR-1535A is an AC operated 8 tube BC and FM band receiver.  The BC band frequency tuning range is 535 to 1620kHz.  The FM band frequency tuning range is 88 to 108MHz.  Has Qty(1) elliptical PM 5" x 7" speaker.  Also has input for phonograph.  BC band uses internal loop antenna and has provisions for connecting external BC band antenna.  FM band uses line cord as antenna and has provisions for connecting external FM band antenna.  Cabinet color is walnut.

This model was built for Montgomery Ward by the Belmont Radio Corp, Chicago, ILL.

Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)
Price in first year of sale 52.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Mentioned in Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1951/52, page 700.)
Literature/Schematics (1) Rider's Perpetual, Volume 20 = covering 1950 (Pages 20-54 to 20-58)
