10KT12M Ch= HS-674B
ID = 145777
 |
 |
 |
 |
 |
Motorola Inc.; : 10KT12M Ch= HS-674B [Radio] ID = 557578 704x641
| Country: United States of America (USA) | Manufacturer/Brand: Motorola Inc.; Schaumburg (IL) |
| Year: 1959 ? | Type: Radio or Tuner |
| Valves / Tubes | 10: 6BQ7A 6AU6 6BE6 6BA6 6AL5 12AX7 12AX7 EL84 EL84 EZ81 |
|---|
| Principle | Super-Heterodyne (Super in general); IF-Freq. 455/10700 kHz |
|---|---|
| Wave bands | Broadcast (BC) and FM. |
| Details | Changer (Record changer) |
| Power type and voltage | Alternating Current supply (AC) / 110 - 120 Volt |
| Loudspeaker/pwr.out | 3 Loudspeakers |
| from Radiomuseum.org | Model: 10KT12M Ch= HS-674B |

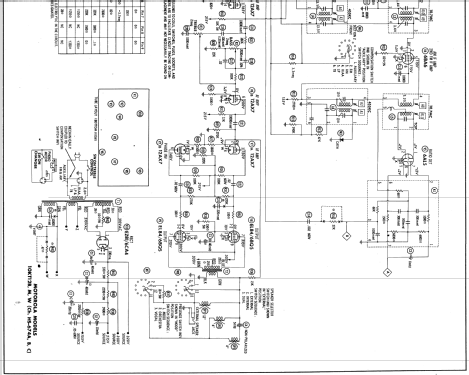

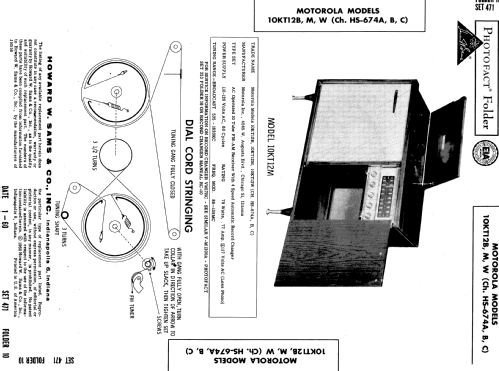

| Notes | AC operated AM - FM tuner with 4 speed automatic record changer. Sams photofact set 471 folder 10 date 1-60 features the Motorola models 10KT12B, 10KT12M and 10KT12W, all with 3 different chassis HS-674A, HS-674B and HS-674C as the same schematic. |
This model was suggested by Peter Hoddow.
All listed radios etc. from Motorola Inc.; Schaumburg (IL)
Here you find 2128 models, 716 with images and 2006 with schematics.
