61T23

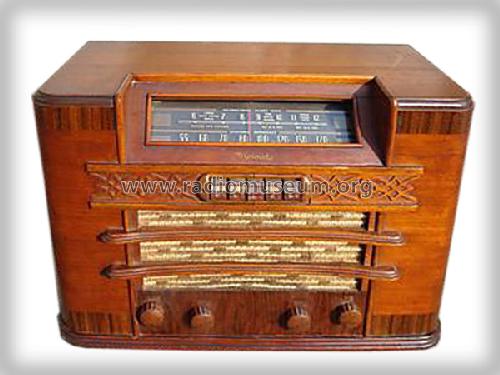

Motorola Inc.; : 61T23 [Radio] ID = 567146 600x450
Ebay 220291145348 Bild bearbeitet.
| Principle |
Superhet with RF-stage; IF-Freq. 455 kHz |
| Tuned circuits |
7 AM circuit(s);
|
| Wave bands |
Broadcast and Short Wave (SW). |
| Power type and voltage |
Alternating Current supply (AC) / 117 Volt |
| Loudspeaker/pwr.out |
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / 3.5 W / Ø 16.5 cm = 6.5 inch
|
| from Radiomuseum.org |
Model: 61T23 |
| Material |
Wooden case |
| Shape |
Tablemodel with Push Buttons. |
| Dimensions (WHD) |
18.5 x 12.5 x 9 inch / 470 x 318 x 229 mm |
| Notes |
Built in loop antenna.

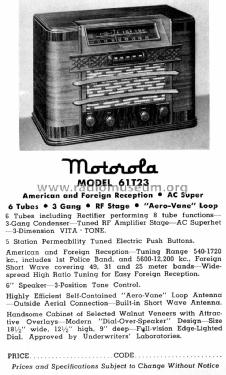

Permeability tuner. Tuning Range: Broadcast: 540-1720 kc; Short Wave: 5.6-12.2 mc. Five push buttons. |
