6TAS8 KPCS6 1956/55 Pontiac

6TAS8 KPCS6 1956/55 Pontiac; Motorola Inc.; (ID = 125176) Car Radio

6TAS8 KPCS6 1956/55 Pontiac; Motorola Inc.; (ID = 125177) Car Radio
Use red slider bar for more.
6TAS8 KPCS6 1956/55 Pontiac; Motorola Inc.; (ID = 125176) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1955 ? Type: Car Radio
Valves / Tubes 8: 12AC6 12AD6 12AC6 12AC6 12CR6 12K5 12AE6 12K5
Semiconductors (the count is only for transistors) 1: 2N176 or. 2N178
Principle Superhet with RF-stage; ZF/IF 262.5 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 14 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 6TAS8 KPCS6 1956/55 Pontiac - Motorola Inc.; Schaumburg IL
Material Metal case
Shape Chassis only or for «building in»
Notes Station finder via foot pedal control

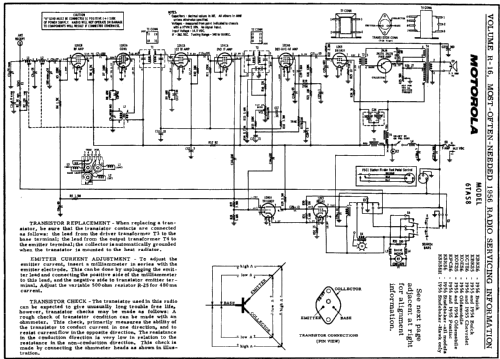

Circuit diagram reference Beitman Radio Diagrams Vol. 16, 1956

Model page created by Egon Penker. See "Data change" for further contributors.
