Model: 6TAS8 (6 TAS 8) KSRS6 (KSRS 6) 1956 Studebaker

Antique radios, Old Time Radios

6TAS8 (6 TAS 8) KSRS6 (KSRS 6) 1956 Studebaker

Country: United States of America (USA) Manufacturer/Brand: Motorola Inc.; Schaumburg (IL)
Year: 1955 ? Type: Car RadioAutoradio - ist nicht immer als solches bezeichnet, da erst später mit Code unterschieden. Mod.-ID = 81781 previous | Result List | next | New search for Radios etc. Schematics etc.: 2 (for members) Principle Superhet with RF-stage; IF-Freq. 262.5 kHz; 3 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.

Tuned circuits 7 AM circuit(s);
Wave bands Broadcast only (MW).Mittelwellenempfänger
Power type and voltage Storage Battery for all / 14 Volt
Loudspeaker/pwr.out Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.
www.radiomuseum.org Model: 6TAS8 (6 TAS 8) KSRS6 (KSRS 6) 1956 Studebaker Material Metal caseMetal case.
Caisse en métal.
Gerät, dessen Gehäuse aus Metall gefertigt ist. Es kann sich um verschiedenartige Metalle und Oberflächenbearbeitungen handeln. Ist es hingegen nur ein Chassis, so erhält das Gerät eine andere Bezeichnung.
Shape Chassis only or for «building in»
Valves / Tubes 8: 12AC6Autoradioröhre (more for members)
Notes Station finder via foot pedal control

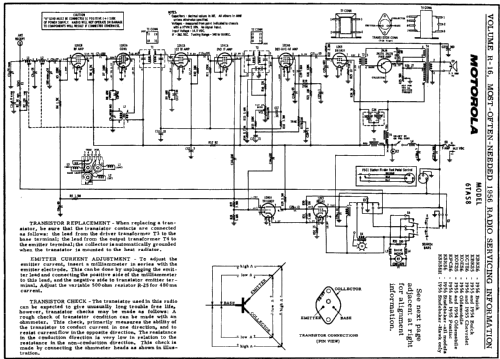

Circuit diagram reference Beitman Radio Diagrams Vol. 16, 1956Most-often-needed Radio Diagrams and Servicing Information, Compiled by M.N. Beitman, Supreme Publications. Al least some of the Books have been reprinted by Vintage Radio Co., P.O.Box 2045, Palos Verdes, CA 90274, USA.

This model was suggested by Egon Penker.

No further information on

6TAS8 (6 TAS 8) KSRS6 (KSRS 6) 1956 Studebaker (Motorola Inc.; Schaumburg (IL))
