9T1

9T1 ; Motorola Inc.; (ID = 1398137) Television 9T1 ; Motorola Inc.; (ID = 1398138) Television
9T1 ; Motorola Inc.; (ID = 1042875) Television 9T1 ; Motorola Inc.; (ID = 1042874) Television
9T1 ; Motorola Inc.; (ID = 189994) Television 9T1 ; Motorola Inc.; (ID = 189993) Television
9T1 ; Motorola Inc.; (ID = 189995) Television 9T1 ; Motorola Inc.; (ID = 189997) Television
9T1 ; Motorola Inc.; (ID = 258494) Television 9T1 ; Motorola Inc.; (ID = 1042873) Television
Use red slider bar for more.
9T1 ; Motorola Inc.; (ID = 1398137) Television
Motorola Inc.;: 9T1 [Television] ID = 1398137 933x999
Select picture or schematic to display from thumbnails on the right and click for download.

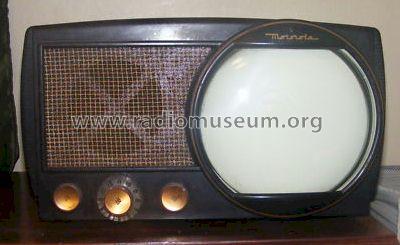

For model 9T1, Motorola Inc.; Schaumburg (IL):
Photo by Rodney Boleyn.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1949 Type: Television Receiver (TV) or Monitor
Principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line (AC, UC or DC not known) / 117 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 9T1 - Motorola Inc.; Schaumburg IL
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17.25 x 9.25 x 18 inch / 438 x 235 x 457 mm
Notes 8" round tube type TV with 12 channel US-VHF Tuner. Screen viewing area measures 6¼" high x 8½" wide.
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.

All listed radios etc. from Motorola Inc.; Schaumburg (IL)
Here you find 3571 models, 2419 with images and 3297 with schematics.
