Mocat 40 40-200

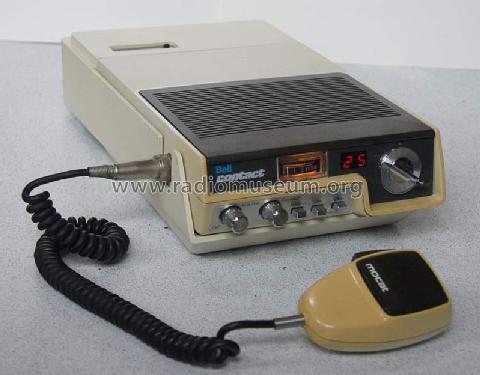

Mocat 40 40-200; Motorola Inc.; (ID = 968333) Citizen Mocat 40 40-200; Motorola Inc.; (ID = 968331) Citizen
Mocat 40 40-200; Motorola Inc.; (ID = 968335) Citizen Mocat 40 40-200; Motorola Inc.; (ID = 968336) Citizen
Mocat 40 40-200; Motorola Inc.; (ID = 968337) Citizen Mocat 40 40-200; Motorola Inc.; (ID = 968338) Citizen
Use red slider bar for more.
Mocat 40 40-200; Motorola Inc.; (ID = 968333) Citizen
Motorola Inc.;: Mocat 40 40-200 [Citizen] ID = 968333 800x518
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mocat 40 40-200, Motorola Inc.; Schaumburg (IL):
Motorola entered the Citizens Band market with a radio built like its commercial two way radios. A phenominal radio way over designed and over built for the existing CB consumer market. Anyone that bought a Motorola CB radio received far more than their money's worth.

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1977 ? Type: Citizen Band Equipment
Principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Batteries / addl. power jack / 13.8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.3 inch = 8.4 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Mocat 40 40-200 - Motorola Inc.; Schaumburg IL
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 7 x 2.5 x 9.25 inch / 178 x 64 x 235 mm
Notes The Motorola Mocat 40 CB-Tranceiver features 40 AM Channels from 26.965 to 27.405 MHz. Built-in S-meter. Switches for PA mode (for use as a Public Address amplifier), Extend (for enhanced noise filtering), and Dim (for display dimming). Separate output jacks for "External Speaker" and "PA" (public address speaker). Can be mounted in cars or trucks under the dashboard or used as a base station with T2015A Base Station Adapter/Power Supply. Suitable Motorola microphone TMN6119A with PTT function.
Net weight (2.2 lb = 1 kg) 3 lb 8 oz (3.5 lb) / 1.589 kg

Model page created by Peter Janko. See "Data change" for further contributors.
