For model TT22CW Ch= HS-67206, Motorola Inc.; Schaumburg (IL):
By Courtesy Of EBAY User: jen126e

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: TT22CW Ch= HS-67206 - Motorola Inc.; Schaumburg IL
Material Wooden case
Shape Tablemodel, low profile (big size).

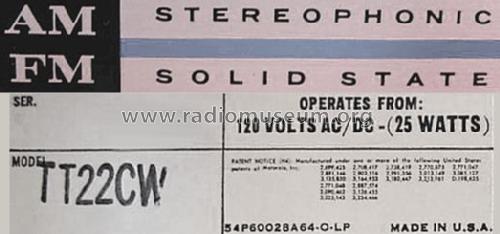

Notes Motorola TT22CW AM FM Stereophonic Solid State;
Separate AM & FM scale but single tuning, FM stereo, tone & balance control, ext. FM antenna screw terminals, RCA ext. speaker terminals, suffix W probably stands for Walnut finish, made in USA.
Collectors' prices
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 942 Folder 6)
