• Country
• Australia

• Manufacturer / Brand
• Mullard Radio Company (Australia) Ltd.; Sydney

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 190839

• Number of Tubes
• 5

• Valves / Tubes

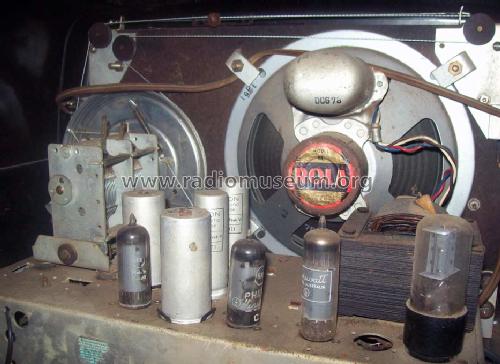

• 6AN7 6N8 6N8 6M5 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 220-240; 250-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material

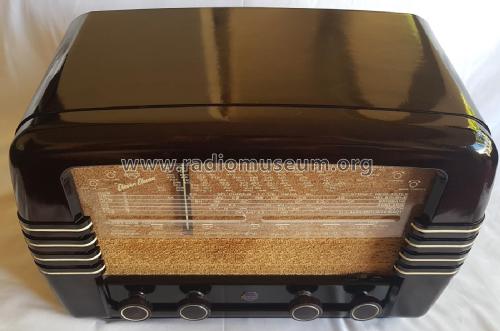

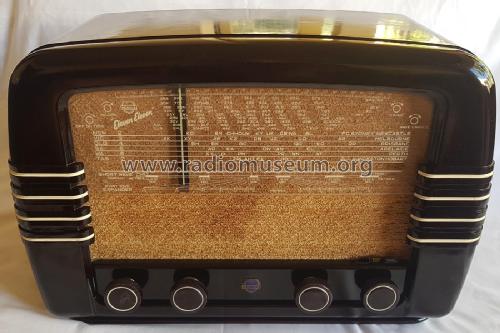

• Bakelite case

• from Radiomuseum.org
• Model: Eleven Eleven MAS 1111 - Mullard Radio Company

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• The Australian Mullard model MAS 1111 is similar to the Philips Australia model 124. It has braodcast band and short waves from 6 to 16 meters - with a bandspread for the 25 m (11.4 - 12 mc) and 31 m band (9.4 - 10 mc/MHz). From AORSM vol.9 P226-227 and pictures.

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. IX

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
