• Year
  • 1938 ?
  • Category
  • Commercial Receiver (may include amateur bands)
  • Radiomuseum.org ID
  • 18782
    • alternative name: National Toy Co.
    • Brand: Thrillbox

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration; 2 AF stage(s)
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage and/or dry batteries / 6 / 180 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

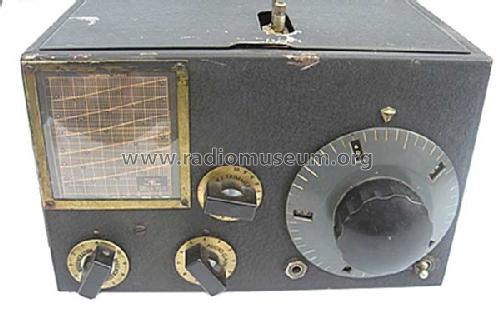

  • Model: 1-10 - National Company; Cambridge &
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • 6 and 180 volt batteries are needed for heater and B-supply. Price is 1938 for receiver and 6 sets of coils, without tubes, speaker or power supply. experimental receiver, covering VHF-UHF bands 27 - 290 MHz with 6 plug-in coils,
    optional power supply 5886AB
  • Price in first year of sale
  • 85.00 $
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • -- Original prospect or advert
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
