• Country
• United States of America (USA)

• Manufacturer / Brand
• National Company; Cambridge & Malden (MA)

• Year
• 1961–1964 ?

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 88899

• • alternative name: National Toy Co.
  • Brand: Thrillbox

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6BZ6 6BE6 6BE6 6BA6 6BA6 6T8 12AX7 6CW5 5Y3GT 0B2

• Main principle
• Superhet, double/triple conversion; ZF/IF 2215/230 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 1 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

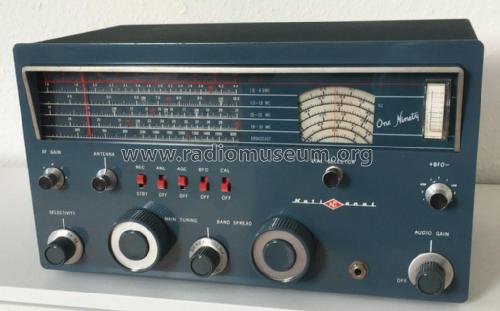

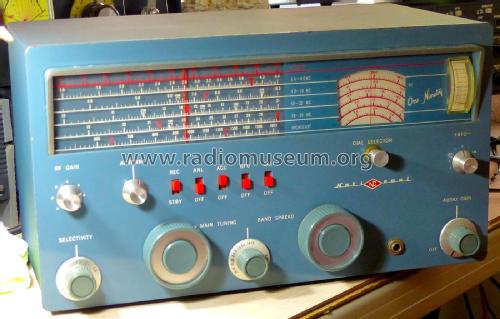

• Model: NC-190 - National Company; Cambridge &

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15.75 x 8.75 x 9 inch / 400 x 222 x 229 mm

• Notes
• coverage 540 kHz - 30 MHz, AM, CW (BFO);
  blue metal cabinet, matching NTS-3B external speaker, matching XCU-109 crystalö calibrator

• Net weight (2.2 lb = 1 kg)
• 11.8 kg / 25 lb 15.9 oz (25.991 lb)

• Price in first year of sale
• 219.00 $

• Source of data
• Communications Receivers

• Mentioned in
• Shortwave Receivers - Past & Present (3rd ed.)

• Literature/Schematics (1)
• Funkschau (18/1963, S. 513, 514)

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
