Quadro-Studio 4500 Art.Nr. 955-957 Körting 34584
Neckermann-Versand KG; Frankfurt a.M.
- Country
- Germany
- Manufacturer / Brand
- Neckermann-Versand KG; Frankfurt a.M.
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290815
-
- Brand: Twen Tone

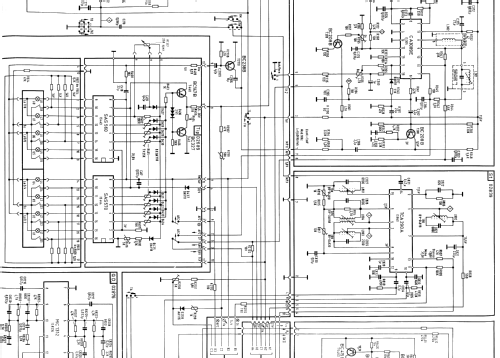

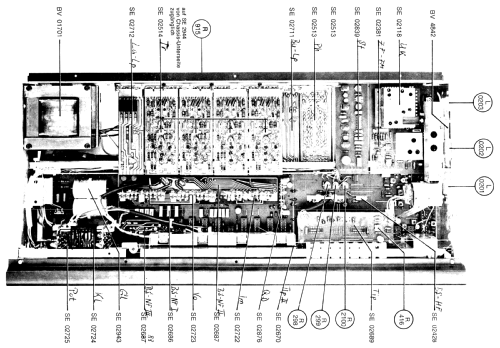

Aus dem Servicemanual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 89
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 80 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Quadro-Studio 4500 Art.Nr. 955-957 Körting 34584 - Neckermann-Versand KG;
- Shape
- Book-shelf unit.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
