• Year
  • 1950 ?
  • Category
  • Microphone or Pick-up element
  • Radiomuseum.org ID
  • 129718

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • VF14
  • Main principle
  • Audio-Amplification; 1 AF stage(s)
  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit. / 110; 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

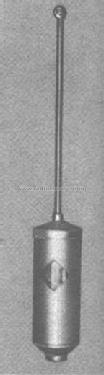

  • Model: Meßmikrofon MM2 - Neumann, Georg, Laboratorium f
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 530 x 70 x 0 mm / 20.9 x 2.8 x 0 inch
  • Notes
  • Messmikrofon von 30 bis 18000 Hz. Mikrofonkapsel 15 mm Durchmesser, befestigt an einem 30 cm langem Rohr auf der Verstärkerflasche (diese entspricht der vom Modell 47/47M). Der Ausgang ist unsymmetrisch und auf 6000 Ohm ausgelegt. Stromversorgung aus dem Netzgerät NG.
