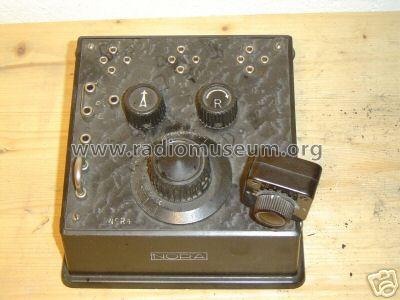

PN2Ra

Nora; Berlin

  • Year
  • 1930/1931
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 8095

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF with regeneration; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - For headphones or amp.
  • Material

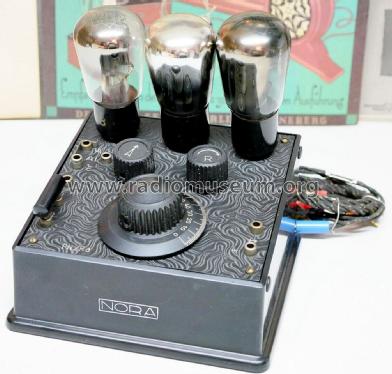

  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org
  • Model: PN2Ra - Nora; Berlin
  • Shape
  • Tablemodel, slant panel.
  • Dimensions (WHD)
  • 155 x 80 x 155 mm / 6.1 x 3.1 x 6.1 inch
  • Notes

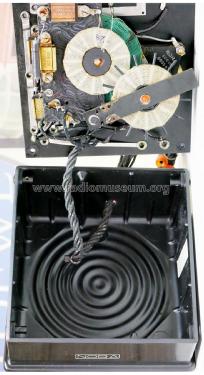

  • Flachpult; innenliegende Spulen.
  • Price in first year of sale
  • 42.00 RM !
  • Mentioned in
  • -- Original prospect or advert (Kahle & Cless, Leipzig, Katalog 1931)

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Nora; Berlin: PN2Ra

Threads: 2 | Posts: 7

Im von mir hochgeladenen Schaltplan ist ein Fehler. Ich habe einen berichtigten Schaltplan hochgeladen und bitte einen Admin den fehlerhaften alten Plan zu löschen.

MfG

Jörg Seidel

Jörg Seidel, 16.May.19

Weitere Posts (2) zu diesem Thema.

In der Beschreibung sind 4 AM Kreise angegeben.

Könnte es nicht sein , dass nur EIN Kreis vorliegt ?

(Es ist ja nicht die Zahl der Spulen gefragt.)

Weiter : im Schaltbild ist unterhalb der Audionröhre ein R mit 120 ohm angegeben.

Hat der einen Sinn ( in Serie mit Rg ~Mohm )?

Ich bin am Restaurieren eines Nora in Pultform.



Armin Eppinger, 16.May.19

Weitere Posts (5) zu diesem Thema.
