Drahtfunk VW1

Drahtfunk VW1; Nora; Berlin (ID = 1222088) Wired-W
Drahtfunk VW1; Nora; Berlin (ID = 446673) Wired-W Drahtfunk VW1; Nora; Berlin (ID = 446676) Wired-W
Drahtfunk VW1; Nora; Berlin (ID = 446674) Wired-W Drahtfunk VW1; Nora; Berlin (ID = 446675) Wired-W
Drahtfunk VW1; Nora; Berlin (ID = 446677) Wired-W Drahtfunk VW1; Nora; Berlin (ID = 446678) Wired-W
Drahtfunk VW1; Nora; Berlin (ID = 446679) Wired-W Drahtfunk VW1; Nora; Berlin (ID = 446680) Wired-W
Drahtfunk VW1; Nora; Berlin (ID = 447233) Wired-W Drahtfunk VW1; Nora; Berlin (ID = 447234) Wired-W
Use red slider bar for more.
Drahtfunk VW1; Nora; Berlin (ID = 446673) Wired-W
Nora; Berlin: Drahtfunk VW1 [Wired-W] ID = 446673 600x510
Select picture or schematic to display from thumbnails on the right and click for download.
For model Drahtfunk VW1, Nora; Berlin:
RKK Radio Museum --- .rkk-museum.ru

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1931–1935 Category: Wired Receiver (AF only)

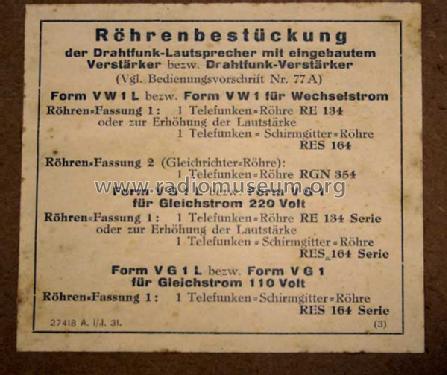

Valves / Tubes 2: RE134 or RES164 RGN354
Main principle Audio-Amplification
Wave bands - without
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC) / 120; 150; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Drahtfunk VW1 - Nora; Berlin
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 255 x 170 x 145 mm / 10 x 6.7 x 5.7 inch
Notes NF-Drahtfunkgerät. Gerätepreis 31/32: 64,- RM, Röhren 23,- RM m. RES164 bzw. 16,- RM m. RE134 Gerätepreis 34/35: 50,- RM, Röhren 14,50 RM m. RES164 bzw. 11,50 RM m. RE134
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 50.00 RM +
Source of data Radiokatalog Band 1, Ernst Erb
Mentioned in Funkgeschichte der GFGF (;Heft 133 ff.)
