Boheme Ch= A 149.B (Ch= 6/675 ohne Stereodecoder)

Boheme Ch= A 149.B ; Nordmende, (ID = 1425219) Radio

Boheme Ch= A 149.B ; Nordmende, (ID = 1425221) Radio

Boheme Ch= A 149.B ; Nordmende, (ID = 1425222) Radio

Boheme Ch= A 149.B ; Nordmende, (ID = 1427336) Radio

Boheme Ch= A 149.B ; Nordmende, (ID = 1427337) Radio
Boheme Ch= A 149.B ; Nordmende, (ID = 589548) Radio Boheme Ch= A 149.B ; Nordmende, (ID = 589549) Radio
Boheme Ch= A 149.B ; Nordmende, (ID = 589560) Radio Boheme Ch= A 149.B ; Nordmende, (ID = 589551) Radio

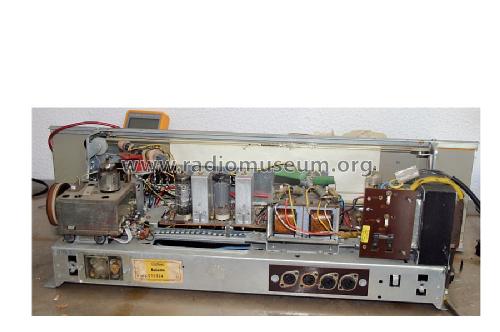

Boheme Ch= A 149.B ; Nordmende, (ID = 589553) Radio
Use red slider bar for more.

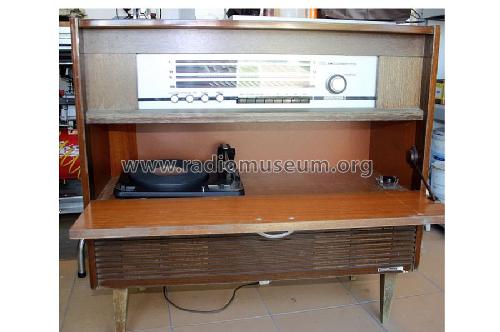

Boheme Ch= A 149.B ; Nordmende, (ID = 589548) Radio
Nordmende,: Boheme Ch= A 149.B [Radio] ID = 589548 900x598
Select picture or schematic to display from thumbnails on the right and click for download.
For model Boheme Ch= A 149.B (Ch= 6/675 ohne Stereodecoder), Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EAF801 ECC808 EMM803 ELL80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Boheme Ch= A 149.B - Nordmende, Norddeutsche Mende-
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 865 x 810 x 380 mm / 34.1 x 31.9 x 15 inch
Notes

Phono-Chassis = Dual 1010.
Without Stereo-decoder.

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Júlio Branco. See "Data change" for further contributors.



All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Here you find 1667 models, 1555 with images and 1202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nordmende,: Boheme Ch= A 149.B
Threads: 1 | Posts: 6
Hits: 8425     Replies: 5
nordmende: Turntable Dual 1010
Júlio Branco
07.May.09
  1

Dear Radio Friends





Who helps me to solve this problem? This radio comes equipped with a turntable DUAL model 1010, whose cartridge didn't bring. I intended to buy a cartridge original, leaning that no longer it exists, for this reason, I am here to ask help who can feel an information where and how to buy a cartridge to substitute the original.





I already sought here, in Portugal, in the houses of the specialty; they say that there is no substitution!

Cordialy

Júlio Branco



Emilio Ciardiello
07.May.09
  2

Hello Julio,

try this address, http://www.garage-a-records.com/. They have a lot of spare parts also for Dual.

Good luck!

Emilio

Júlio Branco
07.May.09
  3

Hello Emílio,

Thank you for his fast help. I already tried for the site that indicated, they answered me that really substitution exists but that didn't have.

Cordialy

Júlio Branco

Rolf Nickel
09.May.09
  4

Dear Julio,

I found out that you should search with the German terms. Then you will get much more results. Might be a difficulty for you, but I would try to help. The German terms are

pick-up cartridge : Tonabnehmersystem (for Dual 1010); and

stylus : Abtastnadel.

I think you need both.

Please look e.g. here.

Kind regards

Rolf





Júlio Branco
12.May.09
  5



Thank you Mr. Rolf for you help,

I am in contact with this Company that you indicated to supply me a complete cartridge so that it substitutes the cartridge for my turntable, whose reference is CDS 650 or CDS 630, both substitutions give for my case.

 Cordially,

Júlio Branco



Júlio Branco
21.May.09
  6

Dear Rolf



After searching several sites for the intended cartridge, it was with this information that I solved the problem of the turntable Dual 1010. They were very nice and fast in sending the kit cartridge.

It has suited very well in the turntable.

Once again thank you very much for this information.

Cordially,

Júlio Branco




Nordmende,: Boheme Ch= A 149.B
End of forum contributions about this model
