• Year
  • 1959–1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 7723

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 3R12: 2 x 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

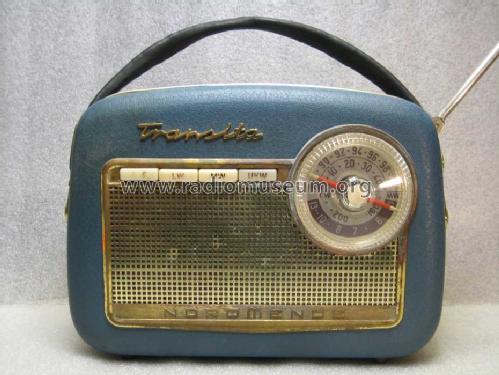

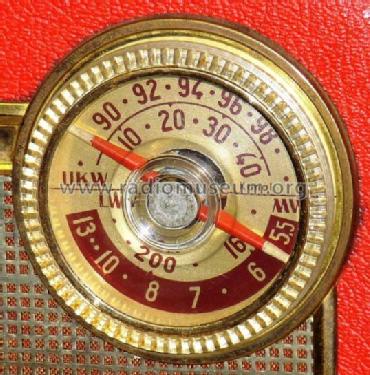

  • Model: Transita U03 CH= 0/603 860.603.00 - Nordmende, Norddeutsche Mende-
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 225 x 168 x 82 mm / 8.9 x 6.6 x 3.2 inch
  • Notes
  • Rundliches, geschwungenes Gehäuse! Alle späteren Transitas sind seitlich und oben gerade.

    Typbezeichnung ist U03, der Buchstabe "F.-" (auch F.-Nr.) bedeutet Fertigungsnummer.
    4 Farben: grün, rot, mittelblau und braun.

    Preis 1960/61 DM 238,-

  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Price in first year of sale
  • 258.00 DM
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Literature/Schematics (2)
  • Handbuch RFP 1959/60 Nachtrag S.378
  • Literature/Schematics (4)
  • -- Schematic
