Transita GT 969.102A Ch= 9.102A (Ch= 769.102A)

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7663

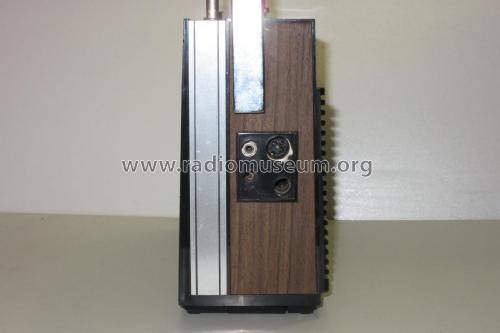

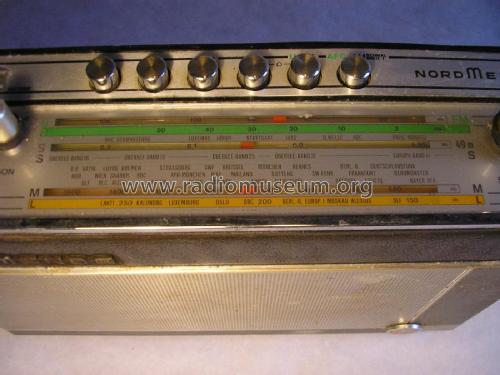

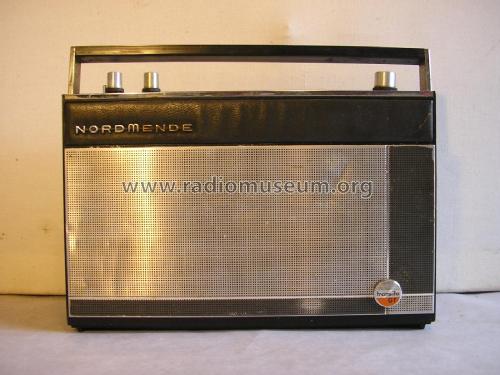

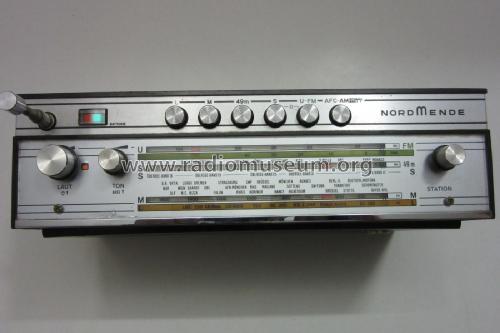

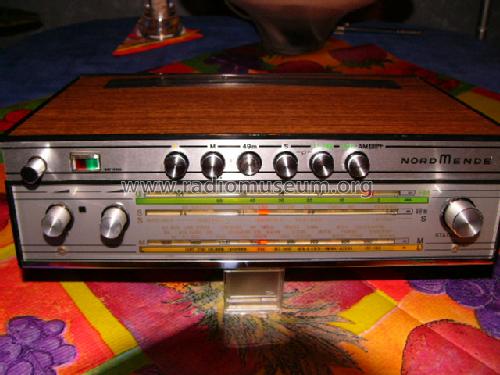

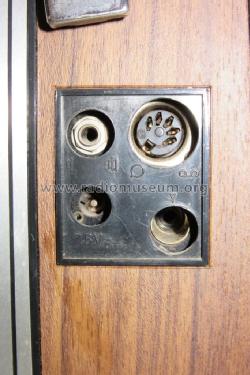

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF106 AF106 AF127 AF126 AF126 AF126 AF137 AC162 AC162 AD155 AD155 AA118 BA111 AA112 AA112 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transita GT 969.102A Ch= 9.102A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 190 x 95 mm / 11.6 x 7.5 x 3.7 inch

• Notes
• UKW: 87 - 104 MHz
  MW: 515 - 1650 kHz
  LW: 145 - 260 kHz
  KW: 7000 - 18000 kHz
  KW-49m: 5950 - 6200 kHz

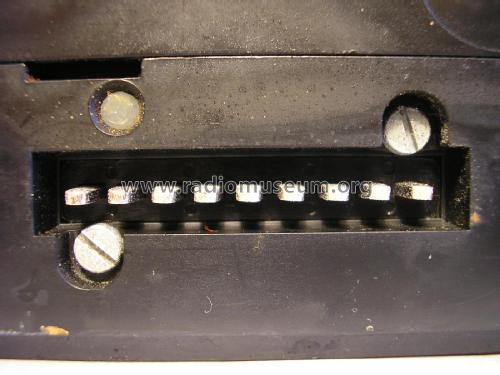

  Betrieb im Auto über Autohalterung 769.181.A aus 6-V- oder 12-V-Autobatterie, dann Ausgangsleistung = 4 W; Netzbetrieb mit zusätzlichem Netzteil TN173 möglich.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 1746 models, 1639 with images and 1263 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
