• Year
  • 1960 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 137640
    • Brand: Norelco

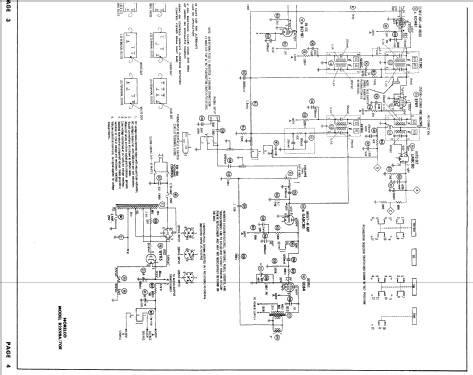

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Norelco B2X98A /70R - Norelco, North American
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • Probably identical with Dutch model Philips B2X98A? Wahrscheinlich identisch mit dem holländischen Modell Philips B2X98A?
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
