• Year
  • 1950 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 154929

 Technical Specifications

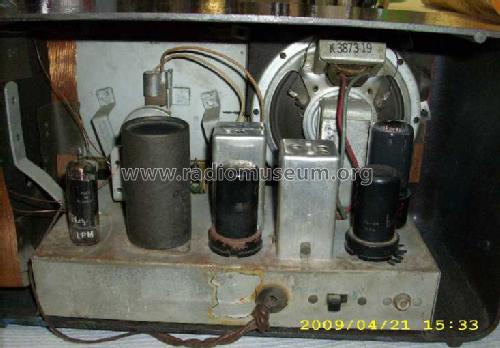

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 110 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

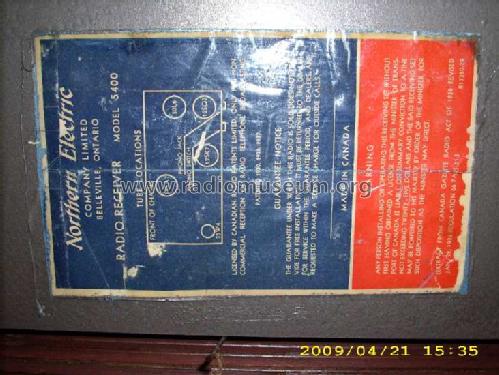

  • Model: 5400 - Northern Electric Co. Ltd.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 15 x 7 x 7 inch / 381 x 178 x 178 mm
  • Notes

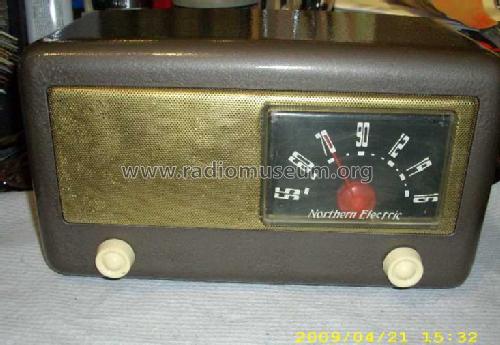

  • Crossover from 5400 (slide rule scale) but with right hand semi circular dial of the 5404, while the left knob remained at left end of cabinet).
  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Price in first year of sale
  • 33.00 CDN
  • Author
  • Model page created by John Allen. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model 5400 (crossover model) is part of the collections of the following members.
