• Country
• Canada

• Manufacturer / Brand
• Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206749

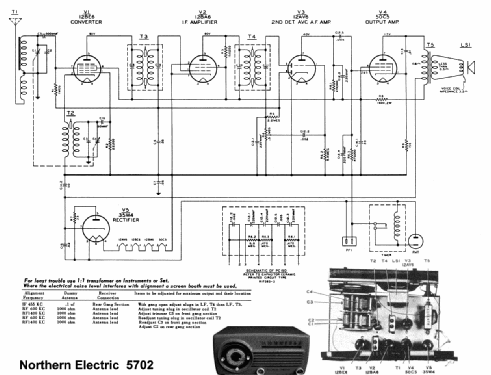

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Radio with other functions

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 5702 - Northern Electric Co. Ltd.;

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• Northern Electric Clock Radio 5702;

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 31 page 57)

• Author
• Model page created by Frank Van de Ven. See "Data change" for further contributors.
