• Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 119946

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1.5 & 2 x 45 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 0.125 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: B-4000 Rainbow Grille - Northern Electric Co. Ltd.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 270 x 159 x 152 mm / 10.6 x 6.3 x 6 inch
  • Notes
  • Back panel Terminals enable hookup of a record player. Tune radio to blank station to play phono.

    Available in brown bakelite, ivory finish, metallic blue and metallic green.

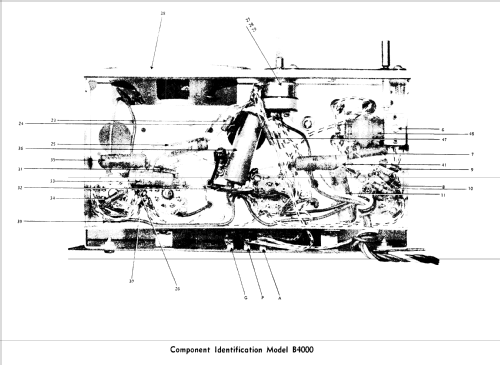

  • Circuit diagram reference
  • Radio College of Canada
  • Literature/Schematics (1)
  • Northern Electric Pages 98, 103
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
