• Year
  • 1927
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 69755

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF with regeneration
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

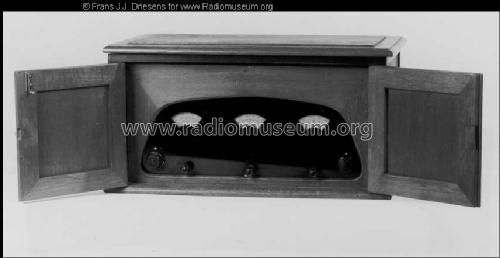

  • Model: NSF5 - NSF Nederlandsche
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • This modell is specifically designed for a loop antenna, but will also work with a normal antenna.
  • Price in first year of sale
  • 300.00 Hfl
  • External source of data
  • Radio Amateur Museum / Frans J.J. Driesens + ISBN 90-76014-04-3.
  • Source of data
  • -- Original-techn. papers.
