• Year
  • 1970 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118858

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 1 × 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

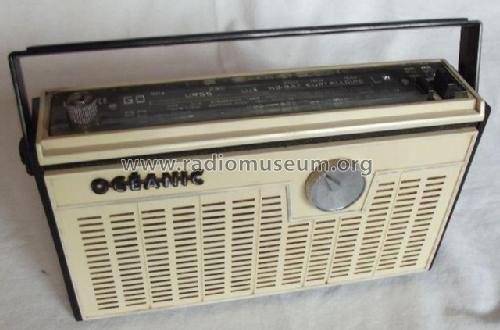

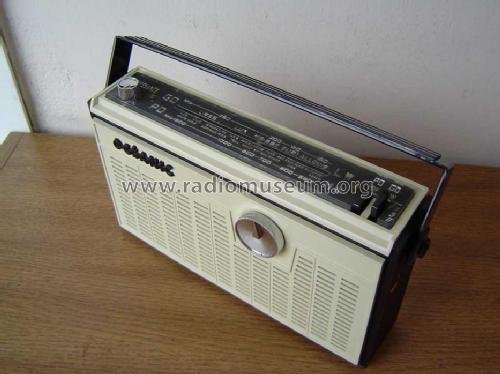

  • Model: T150 - Océanic, ITT Océanic; Paris
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 245 x 140 x 60 mm / 9.6 x 5.5 x 2.4 inch
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Ervé Leclercq. See "Data change" for further contributors.
