Auto-Return Belt Drive Turntable CP-1200A

Auto-Return Belt Drive Turntable CP-1200A; Onkyo; Osaka (ID = 781855) R-Player Auto-Return Belt Drive Turntable CP-1200A; Onkyo; Osaka (ID = 781856) R-Player
Use red slider bar for more.

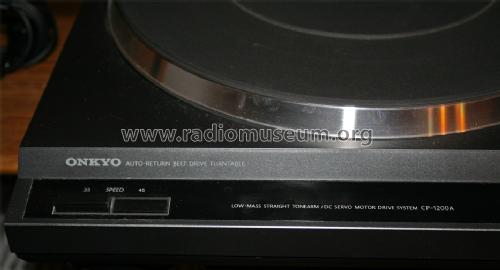

Auto-Return Belt Drive Turntable CP-1200A; Onkyo; Osaka (ID = 781855) R-Player
Onkyo; Osaka: Auto-Return Belt Drive Turntable CP-1200A [R-Player] ID = 781855 933x515
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto-Return Belt Drive Turntable CP-1200A, Onkyo; Osaka

Country:  Japan
Manufacturer / Brand:  Onkyo; Osaka
Year: 1990/1991 Type: Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Auto-Return Belt Drive Turntable CP-1200A - Onkyo; Osaka
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 418 x 132 x 374 mm / 16.5 x 5.2 x 14.7 inch
Notes Halbautomatik, Tonarm-Rückführautomatik und Tonarmlift,
Plattenteller Durchmesser: 310 mm, (Aluminium-Spritzguß),
Motor: Gleichstrom-Servomotor,
Drehzahlen: 33-1/3 und 45 UpM,
Gerader Tonarm mit Gegengewicht, Tonarmlänge: 210 mm.
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Source of data - - Data from my own collection
Mentioned in - - Manufacturers Literature

Model page created by Achim Eisenhuth. See "Data change" for further contributors.
