• Year
  • 1968
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 130751
    • alternative name: TED, Technique et Décoration

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Dry Batteries / D: 5 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

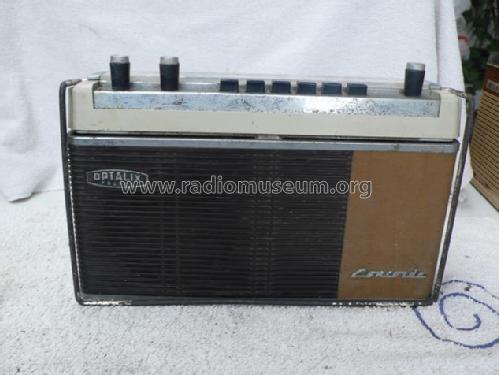

  • Model: Concorde TO400 - Optalix, T.E.D., Faco; Amiens,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 295 x 180 x 80 mm / 11.6 x 7.1 x 3.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Didier Tholomier. See "Data change" for further contributors.
