• Country
• France

• Manufacturer / Brand
• Optalix, T.E.D., (Faco); Amiens, Paris, Aubervilliers

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127466

• • alternative name: TED, Technique et Décoration

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF127 AF127 AF127 AC125 AC132 AC132 OA90

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Studio Europe PO-GO - Optalix, T.E.D., Faco; Amiens,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 315 x 200 x 125 mm / 12.4 x 7.9 x 4.9 inch

• Notes

• 2 gammes d'ondes PO 183 à 578 m, GO 1110 à 2000 m.

  Existe aussi en Type Outremer PO-OC.

  La première incarnation de la série Studio est aussi appelé Studio 1 (sans aucune référence dans la littérature).

• Net weight (2.2 lb = 1 kg)
• 1.880 kg / 4 lb 2.3 oz (4.141 lb)

• Mentioned in

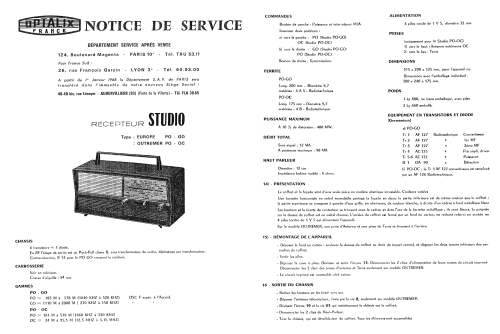

• -- Original-techn. papers.

• Literature/Schematics (2)
• Le grand livre de la TSF (Doctsf Ref 6021)

• Author
• Model page created by Eddy Rischmann. See "Data change" for further contributors.
