• Country
• United States of America (USA)

• Manufacturer / Brand
• Packard Bell Co.; Los Angeles (CA)

• Year
• 1946/1947

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 50087

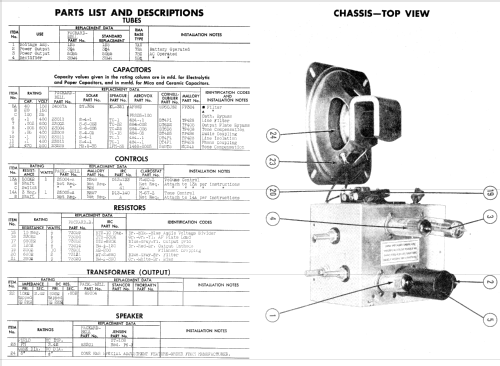

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1S5 3Q4 50B5 35W4

• Wave bands
• - without

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Line / Batteries (any type) / 110-120; 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: U-24 C-1461 Phonograph - Packard Bell Co.; Los Angeles

• Notes
• This model "U-24" has a built-in phonograph "C-1461".
  The Packard-Bell model C-1461 is an Three Power Portable Phonograph with 4-Tube Amplifier and Speaker.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 7, 1947

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date: Jan 1947, Set 12, Folder 472-22)
