48 Table Model

48 ; Packard Bell Co.; (ID = 437576) Radio
48 ; Packard Bell Co.; (ID = 55431) Radio 48 ; Packard Bell Co.; (ID = 663768) Radio
48 ; Packard Bell Co.; (ID = 663765) Radio 48 ; Packard Bell Co.; (ID = 663771) Radio
Use red slider bar for more.
48 ; Packard Bell Co.; (ID = 55431) Radio

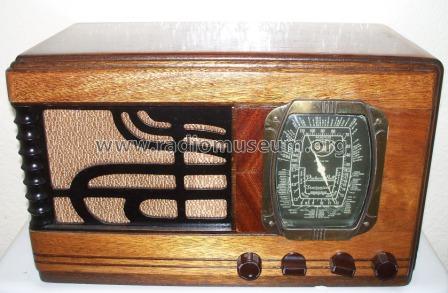

Packard Bell Co.;: 48 [Radio] ID = 55431 933x696
Select picture or schematic to display from thumbnails on the right and click for download.
For model 48 Table Model, Packard Bell Co.; Los Angeles (CA):
Model number uncertain; tube lineup and chassis layout match model 48. No model number indicated on radio itself.

Country:  United States of America (USA)
Manufacturer / Brand:  Packard Bell Co.; Los Angeles (CA)
Year: 1935 ? Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6A8 6K7 6H6 6K7 6E5 or 6G5 6F6 5Z4
Principle Super-Heterodyne (Super in general); ZF/IF 458 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 48 [Table Model] - Packard Bell Co.; Los Angeles
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 16 x 9.5 x 8 inch / 406 x 241 x 203 mm
Notes

Frequency bands: 540 - 1600 kHz, 1.64 - 2.5 MHz, 5.7 - 18.5 MHz. See also the Packard-Bell Model 48 Two-Tone Finish.

Net weight (2.2 lb = 1 kg) 7.7 kg / 16 lb 15.4 oz (16.96 lb)
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before

All listed radios etc. from Packard Bell Co.; Los Angeles (CA)
Here you find 271 models, 144 with images and 228 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
