For model 431, Paillard AG; St. Croix

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1942/1943 Type: Broadcast Receiver - or past WW2 Tuner

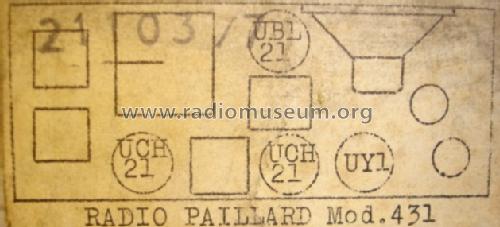

Valves / Tubes 4: UCH21 UCH21 UBL21 UY1
Principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 431 - Paillard AG; St. Croix
Material Bakelite case
Dimensions (WHD) 316 x 200 x 164 mm / 12.4 x 7.9 x 6.5 inch
Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Price in first year of sale 285.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
