• Country
• Great Britain (UK)

• Manufacturer / Brand
• P.A.M. Ltd; Merrow, Guildford

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158553

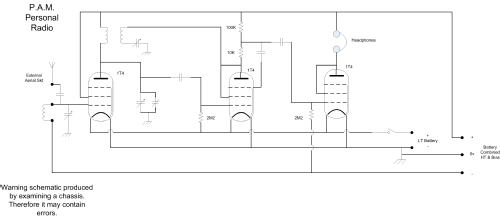

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 1T4 1T4 1T4

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Bakelite case

• from Radiomuseum.org

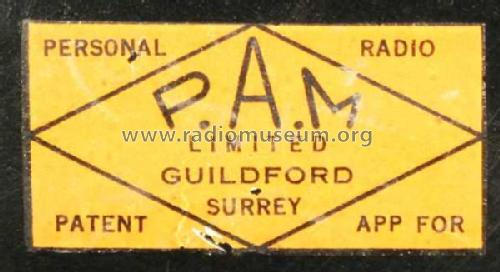

• Model: Personal - P.A.M. Ltd; Merrow, Guildford

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 7 x 5 x 6.5 inch / 178 x 127 x 165 mm

• Notes
• Black bakelite case. Loop aerial in the lid. Headphones only no speaker. LT batteries 2x "D" cell (1.5 volt).

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
