PSB-FM-AM 3-Band RF-877

PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108951) Radio PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 505199) Radio
PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108947) Radio PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108948) Radio
PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108949) Radio PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108950) Radio
PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108952) Radio PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108953) Radio
PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108954) Radio PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108955) Radio
Use red slider bar for more.
PSB-FM-AM 3-Band RF-877; Panasonic, (ID = 1108951) Radio
Panasonic,: PSB-FM-AM 3-Band RF-877 [Radio] ID = 1108951 657x765
Select picture or schematic to display from thumbnails on the right and click for download.
For model PSB-FM-AM 3-Band RF-877, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay user w911jan 130606511698

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1980 ?? Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Other, details in remarks or not known. / 6; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: PSB-FM-AM 3-Band RF-877 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 9 x 9.5 x 3 inch / 229 x 241 x 76 mm
Notes Panasonic RF-877, PSB-FM-AM 3-Band;

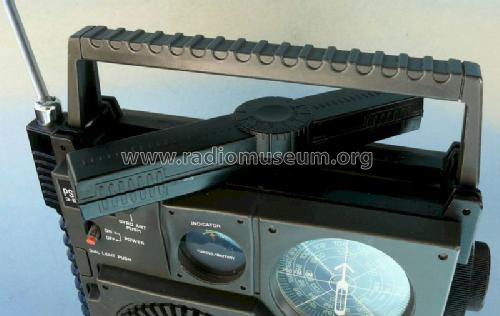

AM-MW/FM & PSB: 148 - 174 MHz, tuning/batt. meter, cycle scale, dial light, turnable ferrite bar - gyro ant., AFC & loudness, tone & squelch control, IC equipped,
ext. 6 VDC in, ranger/military look, suitable 120 VAC adaptor type RD-9488, labeled Panasonic LTD.
Collectors' prices
Source of data - - Manufacturers Literature

Model page created by a member from A. See "Data change" for further contributors.
