R-1028

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165146

• Picture

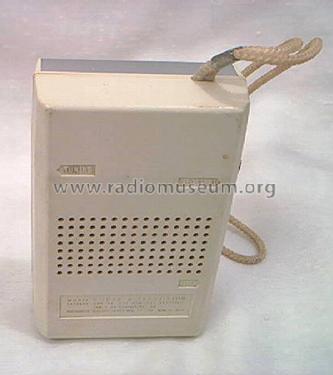

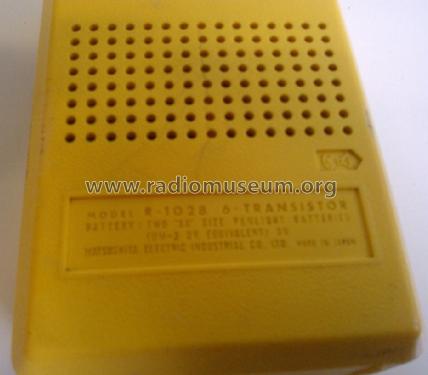

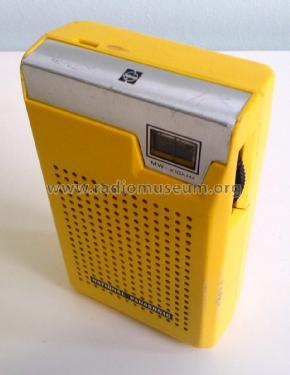

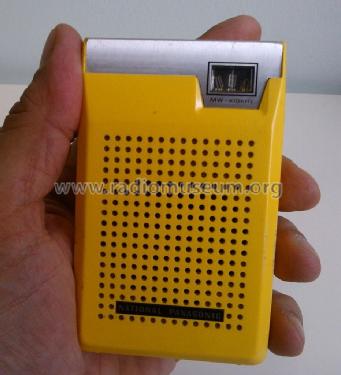

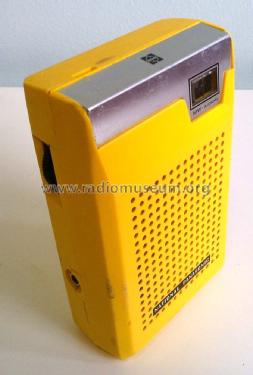

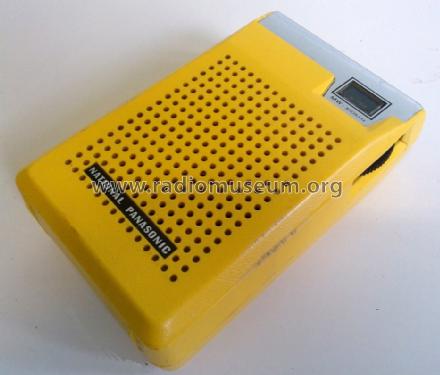

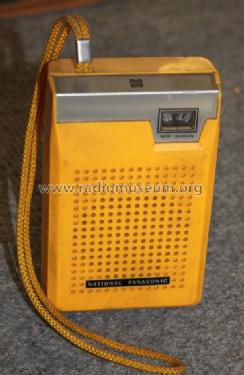

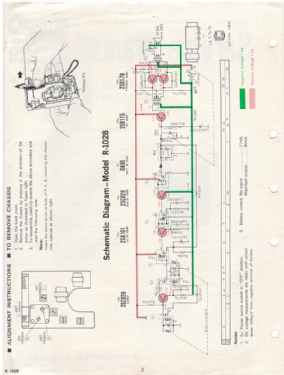

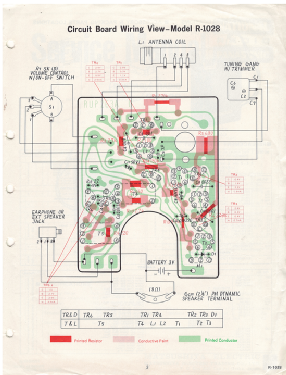

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

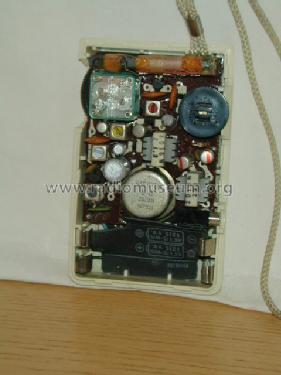

• Number of Transistors
• 6

• Semiconductors
• 2SC829 2SA101 2SC829 2SB175 2SB176 2SB176 OA90

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: R-1028 - Panasonic, Matsushita,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 65 x 110 x 35 mm / 2.6 x 4.3 x 1.4 inch

• Notes

• The Panasonic model R-1028 and R-1045 seem to share the same chassis.

  Mit Metallblende und Trageschlaufe. Modell wurde in verschiedenen Pop-Farben geliefert.

• Net weight (2.2 lb = 1 kg)
• 0.180 kg / 0 lb 6.3 oz (0.396 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
