GX-5II (GX-5 Mark II) RF-1405LBS

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1981 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80817

• Picture

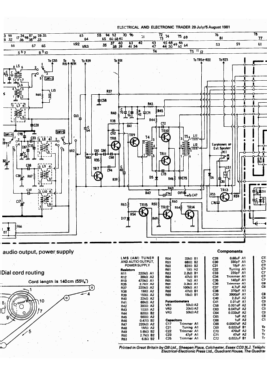

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 50-60 Hz, 110-125; 220-240 / C: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: GX-5II RF-1405LBS - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 157 x 80 mm / 10.4 x 6.2 x 3.1 inch

• Notes
• Panasonic GX-5II (GX-5 Mark II) RF-1405L Battery Saver FM-LW-MW-SW 4-Band Receiver (Missing proof for suffix LBS!);
  Coverage:
  FM: ~88 - 108 MHz,
  MW: 520 - 1600 KHz,
  LW: 150 - 285 KHz,
  SW: ~6.0 - 18 MHz,
  fine tuning, tone control, 4 - LED indicator, AFC, DIN terminal, earphones jack.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Mentioned in
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (3462)
