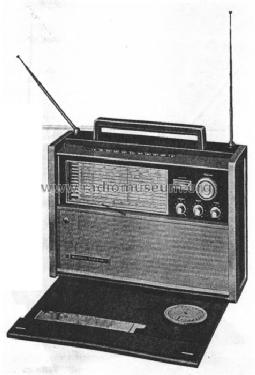

National Panasonic RF-5000A; Panasonic, (ID = 823619) Radio National Panasonic RF-5000A; Panasonic, (ID = 443740) Radio
National Panasonic RF-5000A; Panasonic, (ID = 823615) Radio National Panasonic RF-5000A; Panasonic, (ID = 823617) Radio
National Panasonic RF-5000A; Panasonic, (ID = 823620) Radio National Panasonic RF-5000A; Panasonic, (ID = 823622) Radio
National Panasonic RF-5000A; Panasonic, (ID = 823623) Radio National Panasonic RF-5000A; Panasonic, (ID = 823624) Radio
National Panasonic RF-5000A; Panasonic, (ID = 823625) Radio
Use red slider bar for more.
National Panasonic RF-5000A; Panasonic, (ID = 823619) Radio
Panasonic,: National Panasonic RF-5000A [Radio] ID = 823619 645x569
Select picture or schematic to display from thumbnails on the right and click for download.
For model National Panasonic RF-5000A 20 Transistors, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay 120622171791 by nuvista48 (Transistor quantity unknown)

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 20: 2SC429 2SC469 2SC185 2SC469 2SC469 2SC469 2SC469 2SC185 2SC184 2SC185 2SC183 2SC183 2SB173 2SB345 2SB345 2SB345 2SB324 2SB324 2SB324 2SB126 SC-15 OA90 OA79 1S1211
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 120; 6 x 1,5 & 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: National Panasonic RF-5000A [20 Transistors] - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 420 x 300 x 150 mm / 16.5 x 11.8 x 5.9 inch
Notes

Labeled: "National-Panasonic" RF-5000A, 8 SW bands, Bands: 0,15-0,4; 0,525-1,605; 1,6-4,5; 4,5-6,5; 6,5-9; 9-12; 12-16; 16-20; 20-25; 25-30 MHz; FM 76 - 108 MHz; tuning meter, FM-AFC, 18 + 2 (mains supply) transistors, 12 + 2 (mains supply) diodes, terminals for ext. FM & AM & dipole antenna in, earth, MPX out, Stereo-in, Tape-in, Phono-in & earphone. Built-in 120V/9V AC adapter type "RD-9451".

AM-IF has 3 circuits with an additional ceramic (piezo) filter.
Each diode type listed once only.

See also RF-5000A with 21 transistors.

Price in first year of sale 1,380.00 DM
Collectors' prices
Source of data -- Original-techn. papers.
Mentioned in Novum K.G. Rundfunk Fernseh Phono Katalog 1968/69

Model page created by a member from A. See "Data change" for further contributors.
