National Rover Transistor TV TR 505 EU

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1975

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 129052

• Picture

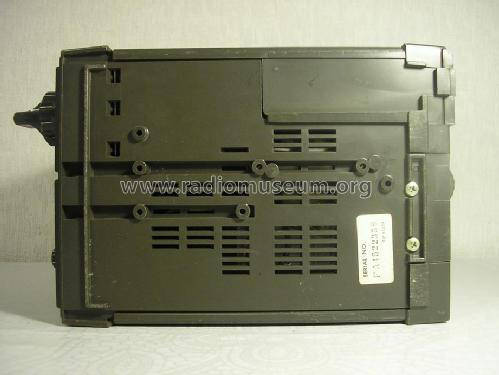

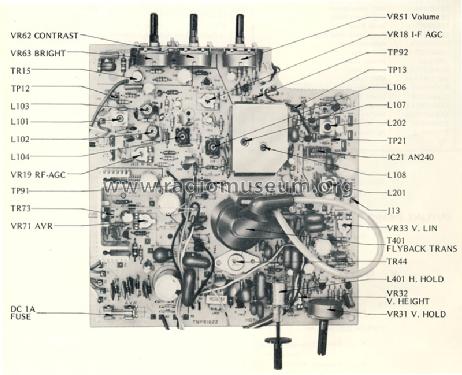

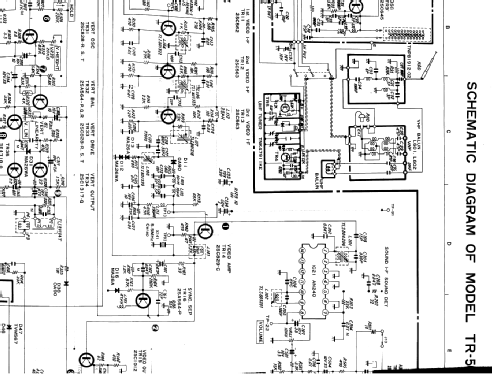

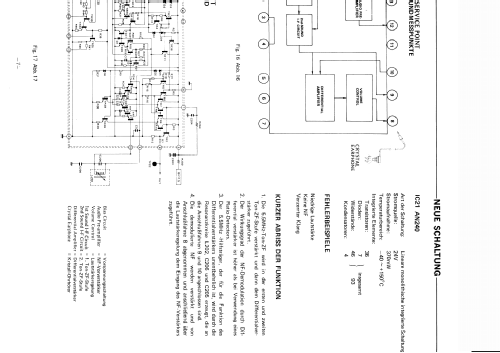

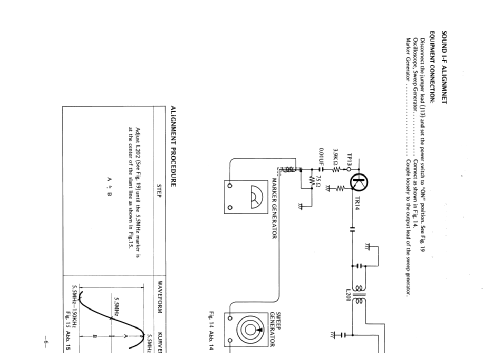

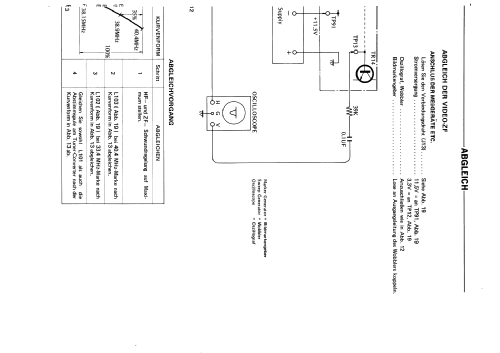

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 140AKB4

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 220 / 9 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: National Rover Transistor TV TR 505 EU - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 160 x 300 x 300 mm / 6.3 x 11.8 x 11.8 inch

• Notes
• National Rover IC TR-505 EU;
  14 cm portable b/w TV in military-ranger design, CCIR B/G standard VHF turret & UHF dial tuner, 12V with external car battery, earphone jack.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Price in first year of sale
• 378.00 DM

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• -- Original prospect or advert ((D) National Gesamtkatalog "Klang-Bilder" 1974)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
