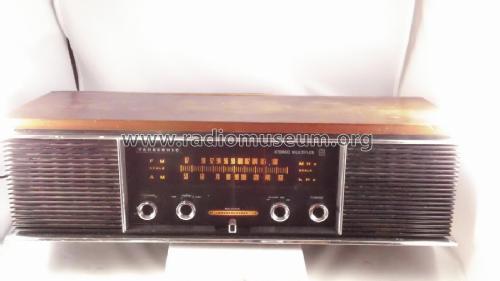

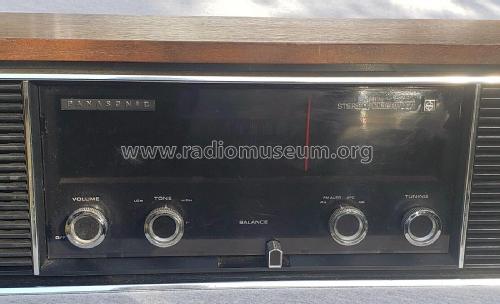

The Woodmont FM-AM, FM-Stereo RE-7300

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 214976

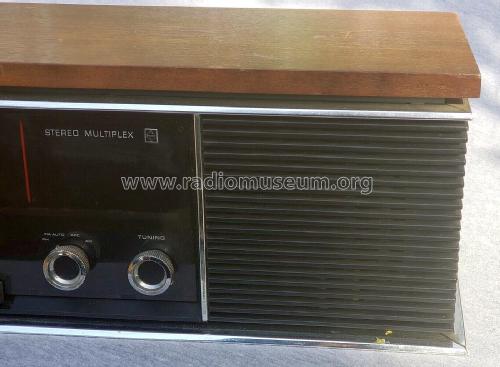

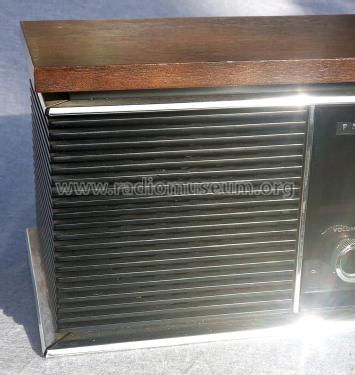

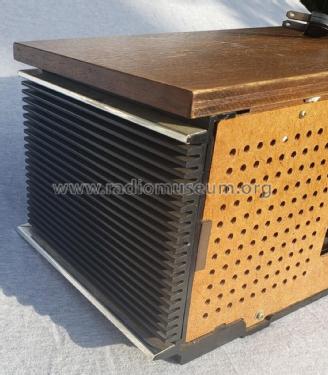

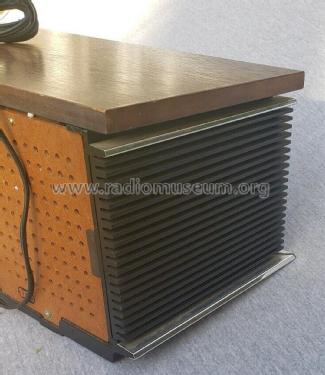

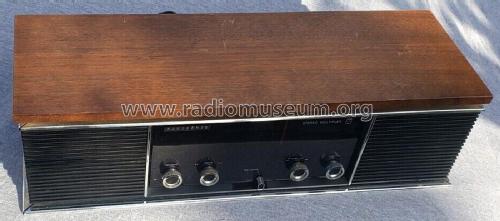

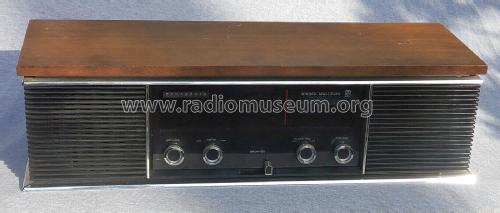

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors
• MK-10-2 2SC185 2SC829 2SC184 2SC183 2SA101 2SB178 2SC564 2SB173 2SC175 2SB324 SC-15 OA90 1S1211

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 5 inch = 12.7 cm

• Power out
• 6 W (max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: The Woodmont FM-AM, FM-Stereo RE-7300 - Panasonic, Matsushita,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 21.25 x 6 x 7.19 inch / 540 x 152 x 183 mm

• Notes

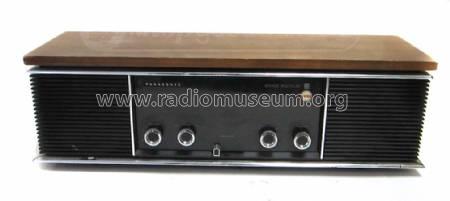

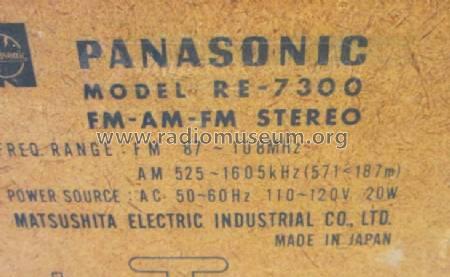

• Panasonic FM-AM-FM Stereo Multiplex TableTop Radio Model RE-7300.
  Tuning ranges FM 87 - 108 MHz, AM 525 - 1605 kHz.

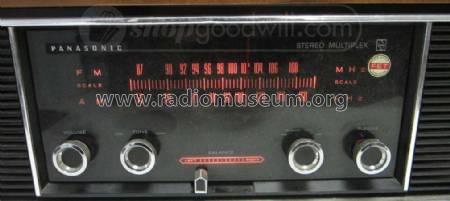

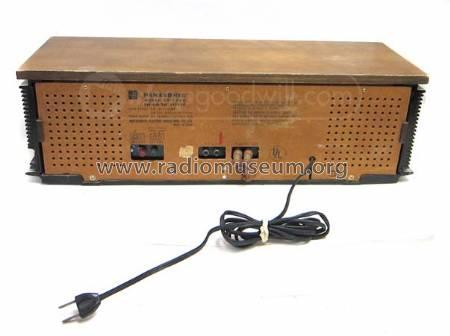

  Phono input, speaker jack.
  Power consumption 20 watts.

  Semiconductors listed once per type.

• Net weight (2.2 lb = 1 kg)
• 11 lb 8 oz (11.5 lb) / 5.221 kg

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
