• Country
• France

• Manufacturer / Brand
• Parinor Pièces; Paris

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123022

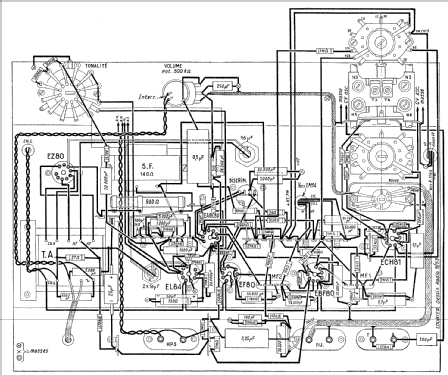

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECH81 EBF80 EABC80 EL84 EM34 ECC81 EF80 6Y4

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: UKW3 - Parinor Pièces; Paris

• Notes
• 2× OC dont une bande étalée.

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
