• Country
• Italy

• Manufacturer / Brand
• Peba Radio; Alessandria

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81339

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UCH81 ECL80

• Number of Transistors

• Semiconductors
• OA72

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.8 cm = 3.5 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

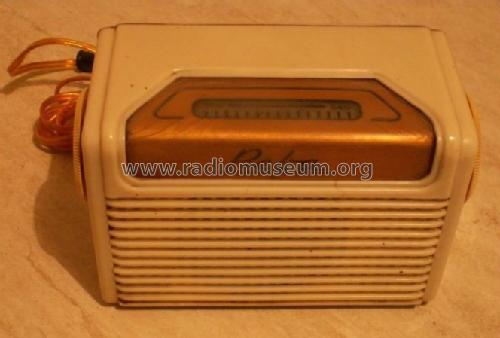

• Model: Ninnolo CV/411 - Peba Radio; Alessandria

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 165 x 105 x 80 mm / 6.5 x 4.1 x 3.1 inch

• Notes

• Apparecchio di minime dimensioni, supereterodina ad uno stadio di media frequenza. Utilizza un diodo OA72. Richiede lunga antenna, scarsamente performante. Prodotto anche con marchio Queenvox, Alfa Radio e Atlanta.


  Miniature superhet receiver, with one IF stage, one OA72 diode, poor performer, needs a long aerial.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Price in first year of sale
• 12,000.00 ITL

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Mentioned in
• Catalogo ANIE (1956-57)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
