Multiband 102

Multiband 102 ; Perdio Electronics (ID = 727084) Radio

Multiband 102 ; Perdio Electronics (ID = 727085) Radio

Multiband 102 ; Perdio Electronics (ID = 727086) Radio
Multiband 102 ; Perdio Electronics (ID = 1476811) Radio Multiband 102 ; Perdio Electronics (ID = 1476810) Radio
Multiband 102 ; Perdio Electronics (ID = 1476809) Radio Multiband 102 ; Perdio Electronics (ID = 1476812) Radio
Multiband 102 ; Perdio Electronics (ID = 1476813) Radio Multiband 102 ; Perdio Electronics (ID = 1476814) Radio
Use red slider bar for more.
Multiband 102 ; Perdio Electronics (ID = 1476811) Radio
Perdio Electronics: Multiband 102 [Radio] ID = 1476811 600x693
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multiband 102, Perdio Electronics Ltd.; London:
eBay Item number:161033726072

Country:  Great Britain (UK)
Manufacturer / Brand:  Perdio Electronics Ltd.; London
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF115 AF115 AF115 AF117 AF117 OC71 OC71 OC81D OC81 OC81
Main principle Superhet with RF-stage; ZF/IF 470 kHz; 4 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Multiband 102 - Perdio Electronics Ltd.;
Material Modern plastics (no Bakelite or Catalin)

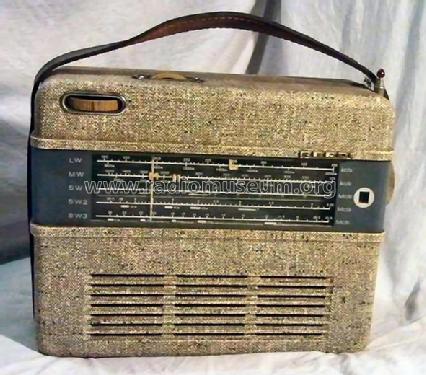

Shape Portable set > 8 inch (usable also without mains)
Notes Portable radio. LW MW & 3 SW (1.6-4.05 3.85-10.7 10.3-26.5 Mhz). Battery PP9. Price £22.5s.3d. plus tax £8.2s.9d. Total 28gns.
Price in first year of sale 22.00 GBP
Source of data -- Schematic

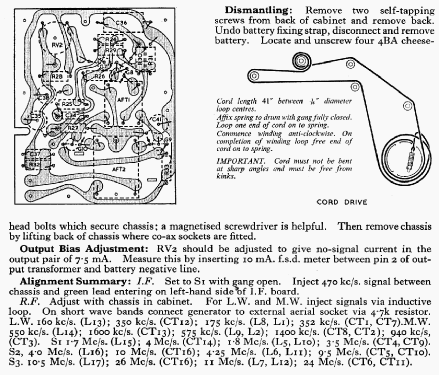

Literature/Schematics (1) Radio And Television Servicing books (R&TVS) (RER Sheet R183.)

Model page created by Keith Staines. See "Data change" for further contributors.
