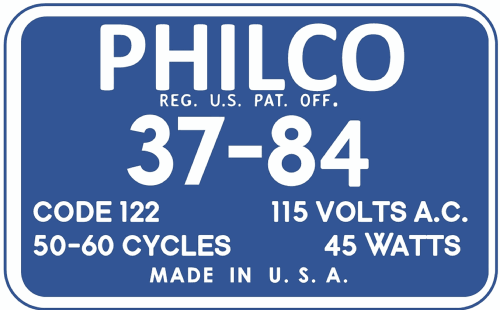

37-84B (37-84, 37-84A) Code 122 Late
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 119287
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; Super, reaction, but not adjustable
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 0.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 37-84B Code 122 [Late] - Philco, Philadelphia Stg. Batt
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Notes
- Philco model 37-84B was the fourth and final generation (following models 80B, 81B, and 84B) of low cost 4-tube cathedrals that used a regenerative combined IF/detector stage in a superheterodyne circuit to maximize sensitivity with very few components.
Three versions of 37-84B are known: Code 121 uses a chassis with the old style tube lineup of the previous model 84B. The two versions of 37-84B code 122 use more modern octal tubes. While the standard versions of these chassis are for 50-60 Hz AC power, there was also a 37-84A chassis for 25-40 Hz power (probably available for both codes 121 and 122). Note that the -A suffix is a chassis suffix, not to be confused with the main model number -B suffix, which indicates cathedral cabinet.
The early version of code 122 has four vertical bars through the speaker opening. The late version has simple curvy lattice work in the lower part of the speaker opening. Code 121 has a cabinet similar to the late version of code 122, even though its tube lineup suggests it was chronologically first.
- Price in first year of sale
- 20.00 $
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Mentioned in
- Philco Radio 1928-1942
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 01, 1926-1938 (Philco Service Bulletin # 244)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
