• Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 137499

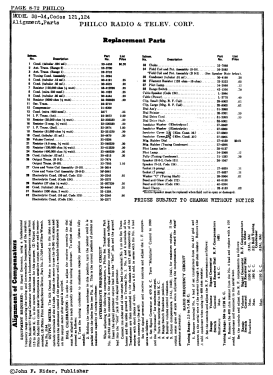

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

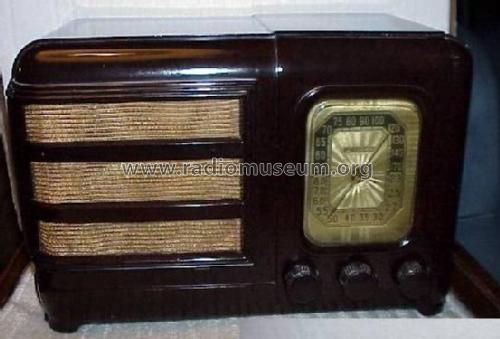

  • Model: 38-14CB - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • Bakelite case version shown under replacement cabinets in Philco 1941 RMS Yearbook, page 29.
  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
  • Literature/Schematics (1)
  • Philco Service Bulletin # 288
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
